AVENTICS R402000307 Pneumatic Guided Cylinder - , 10mm Bore, 75mm Stroke, GPC Series, Double Acting

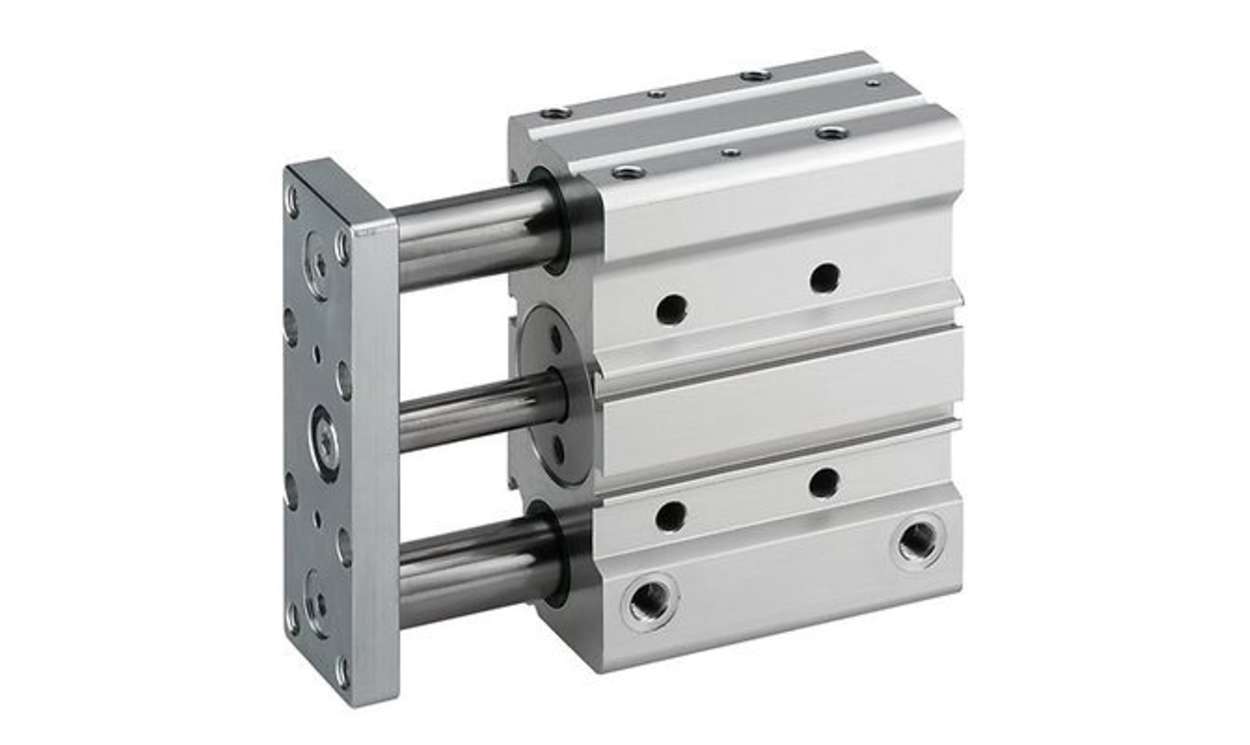

Name: AVENTICS R402000307 Pneumatic Guided Cylinder - , 10mm Bore, 75mm Stroke, GPC Series, Double Acting
Brand: Aventics
SKU: R402000307
Availability: OutOfStock

Part Number : R402000307

Availability: Sold out

Detailed Description
Specifications

The Aventics Guide Cylinders from the Series GPC-BV integrate advanced engineering to deliver exceptional performance in demanding industrial environments. Featuring a robust, double-acting design, these cylinders are adept at handling high side loads and offer superior torsion protection. The 10 mm piston diameter allows for precision movements, while the elastic cushioning system enhances operational smoothness.

Versatile applicability across various industrial applications
Robust build materials ensure longevity and reliability
Wide operational temperature range caters to diverse environments
Enhanced compatibility with sensor series for flexible integrations

Brand	AVENTICS
Manufacturer Series	GPC
Model Number p	R402000307
Stroke	75mm
Action	Double
Bore	10mm
Pneumatic Connection	M5
Port Connection	M5
Cushioning Type	Elastic
Maximum Operating Pressure	8 bar
Maximum Operating Temperature	+70°C
Piston Speed	500mm/s
Minimum Operating Temperature	-10°C
