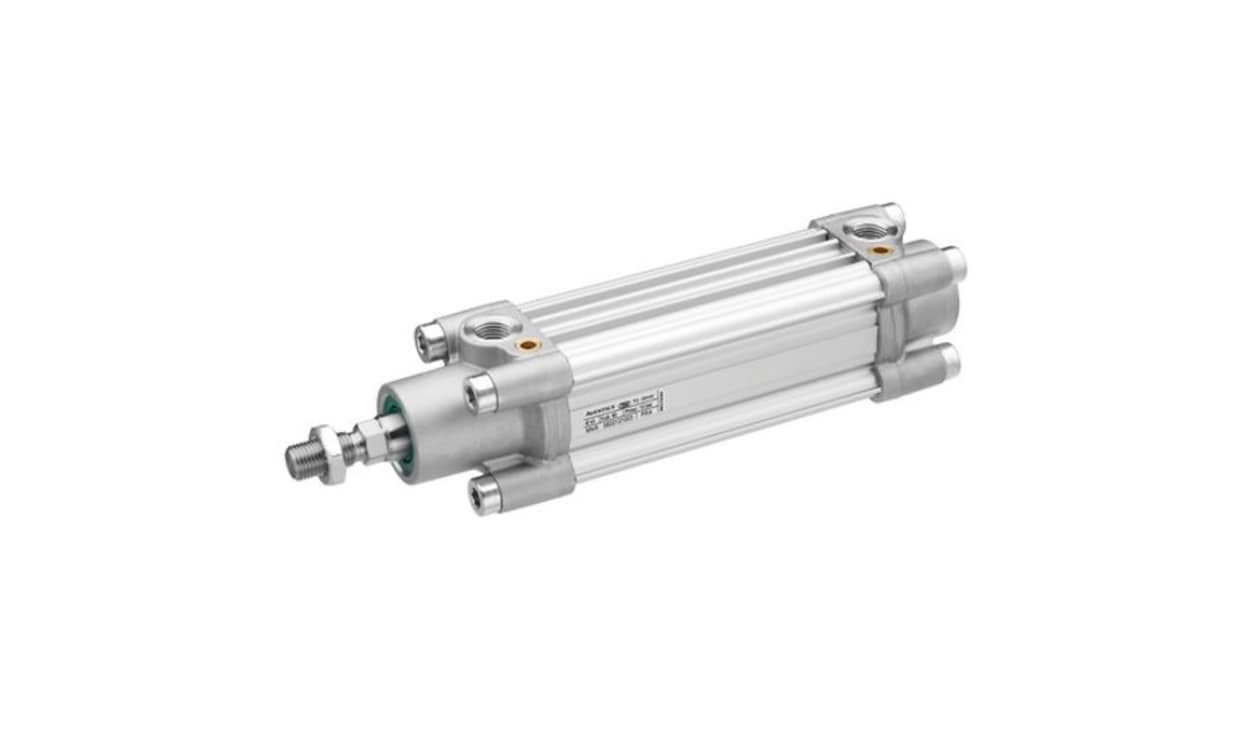

AVENTICS R412014259 Pneumatic Piston Rod Cylinder - , 50mm Bore, 100mm Stroke, PRA Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R412014259 Pneumatic Piston Rod Cylinder - , 50mm Bore, 100mm Stroke, PRA Series, Double Acting

Name: AVENTICS R412014259 Pneumatic Piston Rod Cylinder - , 50mm Bore, 100mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R412014259
Availability: OutOfStock

Part Number : R412014259

Availability: Sold out

Detailed Description
Specifications

The Aventics versatile profile cylinder from aventics is designed to meet the demands of a wide array of industrial applications. The PRA Series, compliant with ISO 15552 standards, combines a compact design with integrated sensor slots, making it suitable for general automation and intricate industry-specific tasks alike. With efficient double-acting functionality, this cylinder ensures reliable performance in challenging environments, supporting both standard and specialised use cases. Not only does it integrate seamlessly into existing setups, but it is also engineered for ease of maintenance, enhancing operational longevity. The advanced technology that defines this product promises consistent results, empowering businesses to achieve greater efficiency and productivity in their operations.

Compact design optimised for space-restricted applications
Integrated sensor slots enable straightforward installation of sensors
Compatible with a variety of industry standards for versatility
Double-acting functional principle increases operational efficiency
Pneumatic adjustable cushioning enhances performance across varied applications
Constructed with premium materials for extended durability
Designed to withstand a wide range of ambient conditions
Compliant with stringent operational pressure requirements
Lightweight construction facilitates easier handling and installation

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R412014259
Action	Double
Stroke	100mm
Bore	50mm
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+120°C
