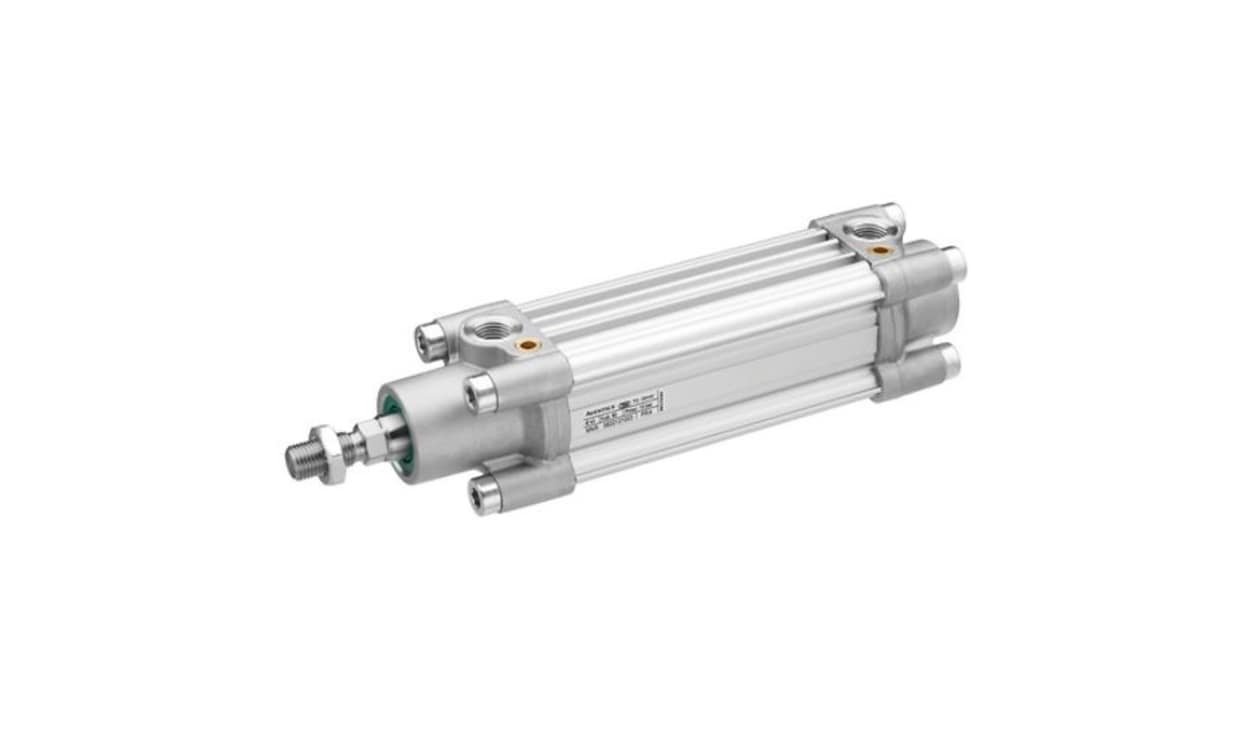

AVENTICS R412014311 Pneumatic Piston Rod Cylinder - , 80mm Bore, 500mm Stroke, PRA Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R412014311 Pneumatic Piston Rod Cylinder - , 80mm Bore, 500mm Stroke, PRA Series, Double Acting

Name: AVENTICS R412014311 Pneumatic Piston Rod Cylinder - , 80mm Bore, 500mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R412014311
Availability: OutOfStock

Part Number : R412014311

Availability: Sold out

Detailed Description
Specifications

The Aventics profile cylinder, designed in accordance with ISO 15552 standards, combines compactness with robust performance, making it a versatile choice for various industrial applications. The series PRA is engineered to facilitate efficient automation processes in diverse sectors, from general machine construction to specific industrial settings. Its double-acting functional principle, alongside adjustable cushioning, ensures smooth and precise operation, enabling enhanced productivity. The integration of sensor slots allows for easy monitoring and control, further elevating its operational functionality. The external thread on the piston rod, coupled with high-quality materials, guarantees durability and strength, ensuring longevity in challenging environments. Overall, this product is an excellent investment for businesses seeking reliability and efficiency.

Compact design optimised for space-saving installation
Integrated sensor slots allow for enhanced feedback and monitoring
Double-acting mechanism provides effective use in various applications
Pneumatic adjustable cushioning offers smooth operation tailored to specific needs
Constructed with industry-standard materials for enhanced durability
Suitability for a wide temperature range, ensuring performance in diverse environments
Designed to meet stringent pressure requirements, enhancing operational reliability

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R412014311
Bore	80mm
Stroke	500mm
Action	Double
Pneumatic Connection	G 3/8
Port Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+120°C
Minimum Operating Temperature	-10°C
