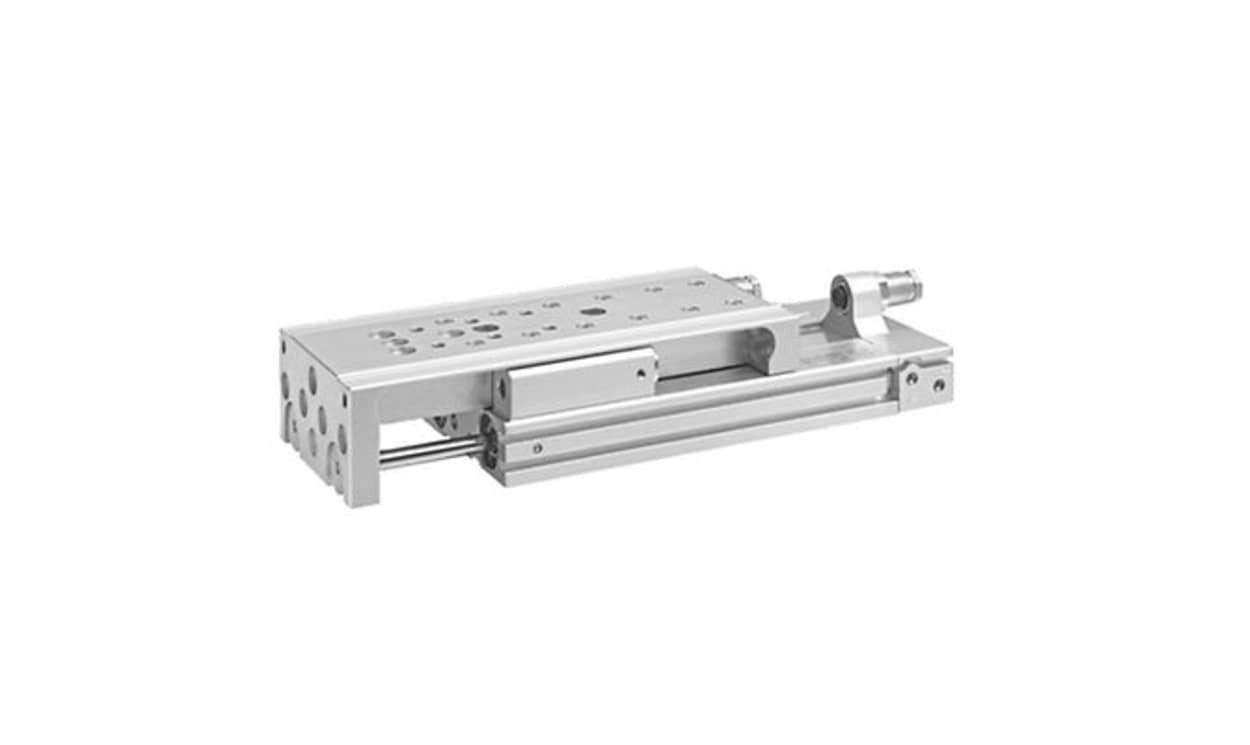

AVENTICS R412019189 Pneumatic Guided Cylinder - MSC-HG-HM, 16mm Bore, 150mm Stroke, MSC Series, Double Acting

Name: AVENTICS R412019189 Pneumatic Guided Cylinder - MSC-HG-HM, 16mm Bore, 150mm Stroke, MSC Series, Double Acting
Brand: Aventics
SKU: R412019189
Availability: OutOfStock

Part Number : R412019189

Availability: Sold out

Detailed Description
Specifications

The Aventics mini slide from aventics is an innovative solution designed for automation handling tasks. Its compact design saves valuable installation space while providing flexible configurations for diverse applications. With precision and reliability at its core, this mini slide ensures efficient operation in various industrial sectors. The MSC series boasts a robust construction, featuring high torque absorption, optimal stability, and maintenance-friendly features. Advanced cushioning technology enhances operational safety and reduces wear, ensuring a long-lasting component in your system. When combined with the unique Easy-2-Combine Interface, it facilitates quick integration with other handling system components, minimizing setup time and maximising productivity.

Compact design optimises installation space
Precision engineering ensures high repetitive accuracy
Configured for a wide range of automated handling tasks
Equipped with double-acting functionality for enhanced performance
Hydraulic cushioning provides smooth operation and reduces impact
Maintenance-friendly design extends the product's lifespan
Compatible with Easy-2-Combine Interface for seamless integration
Robust materials ensure durability and reliability in industrial environments

Brand	AVENTICS
Manufacturer Series	MSC
Model Number p	MSC-HG-HM
Action	Double
Bore	16mm
Stroke	150mm
Pneumatic Connection	M5
Port Connection	M5
Cushioning Type	Hydraulic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+60°C
Piston Speed	800mm/s
