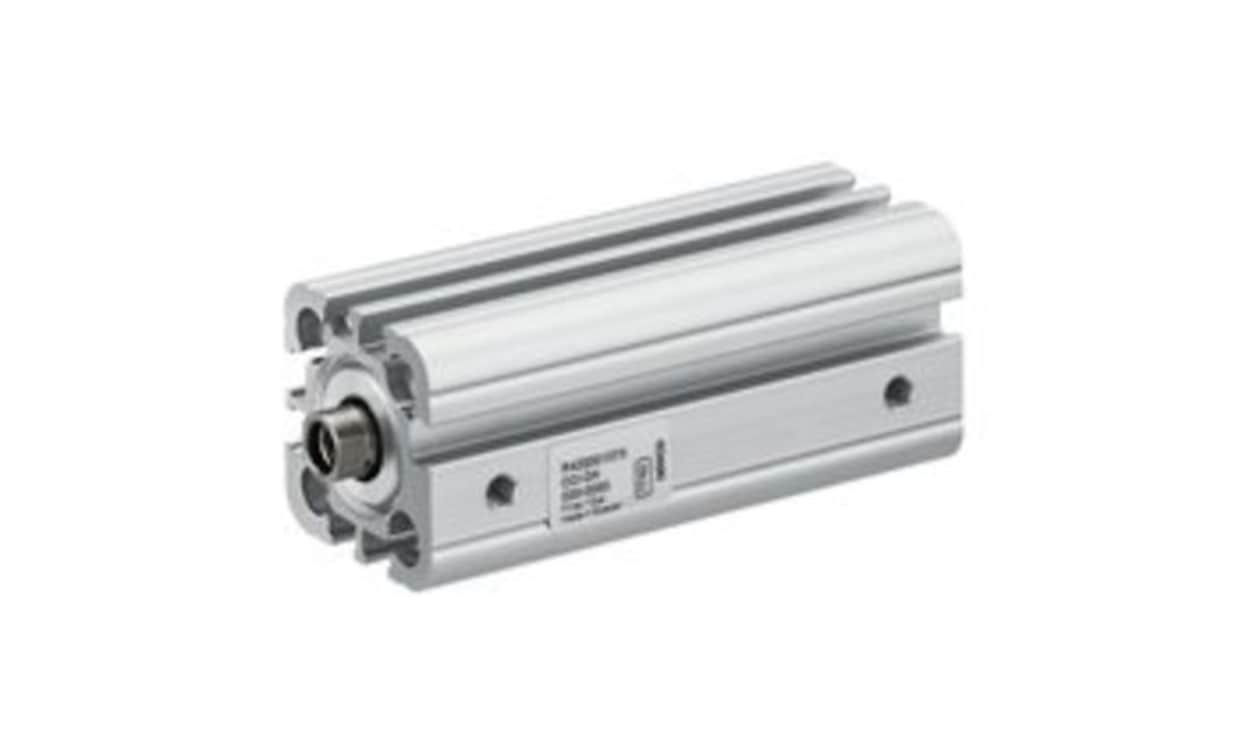

AVENTICS R422001163 Pneumatic Compact Cylinder - , 20mm Bore, 20mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001163 Pneumatic Compact Cylinder - , 20mm Bore, 20mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001163
Availability: OutOfStock

Part Number : R422001163

Availability: Sold out

Detailed Description
Specifications

The Aventics compact cylinder ISO 21287, Series CCI, embodies cutting-edge design and functionality, making it an exceptional choice for demanding industrial applications. Its innovative engineering ensures an easy-to-clean surface, optimised cycle times, and suitability for long strokes with increased requirements for moving masses. With sensors easily installable along the entire length of the cylinder, this product streamlines integration into various systems, catering to diverse operational needs while adhering to industry standards.

Double-acting functional principle enhances versatility in operation
Elastic cushioning guarantees smooth and controlled movements
ATEX certification option provides assurance for hazardous environments
Environmental resistance supports reliable performance under industrial conditions
An exterior thread design simplifies installation and maintenance
The lightweight design contributes to overall system efficiency
Optimal pressure range ensures effective performance across applications
Standardised scraper material promotes durability and longevity
Advanced material selection enhances resilience and corrosion resistance

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001163
Stroke	20mm
Bore	20mm
Action	Double
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
