AVENTICS R422001292 Pneumatic Compact Cylinder - , 16mm Bore, 20mm Stroke, CCI Series, Double Acting

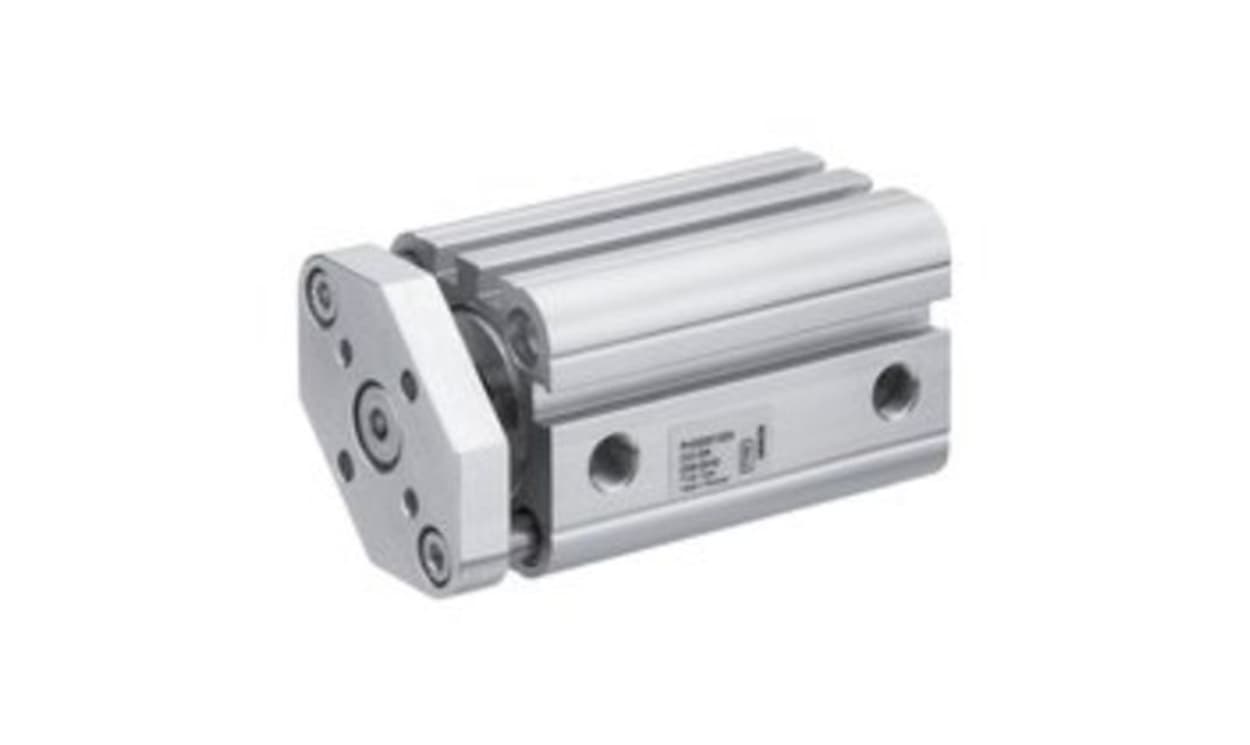

Name: AVENTICS R422001292 Pneumatic Compact Cylinder - , 16mm Bore, 20mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001292
Availability: OutOfStock

Part Number : R422001292

Availability: Sold out

Detailed Description
Specifications

The Aventics CCI Series Compact Cylinder, designed according to ISO 21287 standards, exemplifies innovative engineering and is built for performance in industrial environments. With a focus on compactness and heightened efficiency, this cylinder is particularly suited for applications requiring long strokes and optimised cycle times. Its easy-to-clean design and versatile sensor installation make it a top choice for industries where cleanliness and functionality are paramount. The robust construction, featuring an aluminium cylinder tube and stainless steel piston rod, ensures longevity and reliability under various environmental conditions. Equipped with elastic cushioning and a magnetic piston, this model not only meets but surpasses industry standards, providing smooth operation and enhanced control for diverse applications.

Compact design facilitates installation in space-restricted environments
Double-acting functional principle allows for versatile operational use
Easy installation of sensors enhances user convenience and adaptability
Robust materials ensure durability and prolonged service life
Versatile temperature range accommodates diverse operating conditions
Designed for effective pneumatic control with minimal maintenance required
Optimised for high-performance applications, providing reliable force output
Lightweight construction aids in reducing total system mass

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001292
Action	Double
Stroke	20mm
Bore	16mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
