AVENTICS R422001367 Pneumatic Compact Cylinder - , 50mm Bore, 100mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001367 Pneumatic Compact Cylinder - , 50mm Bore, 100mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001367
Availability: OutOfStock

Part Number : R422001367

Availability: Sold out

Detailed Description
Specifications

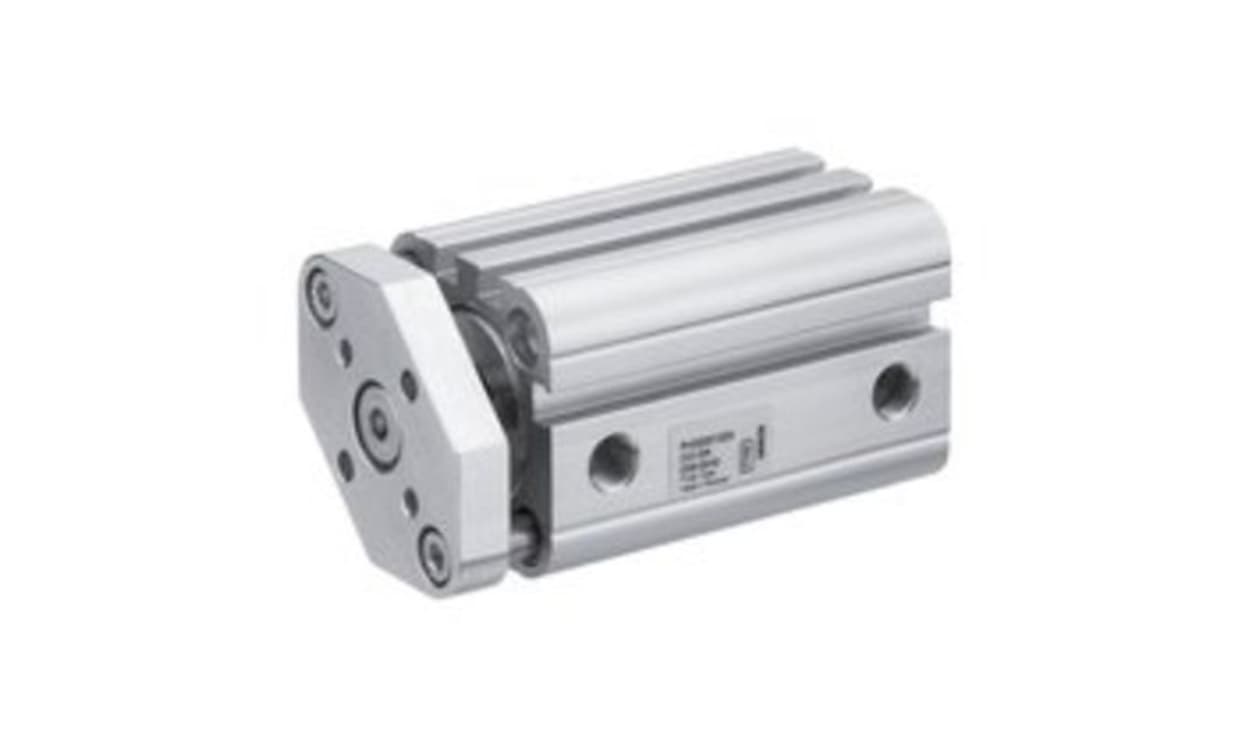

The Aventics series CCI compact cylinder is designed in accordance with ISO 21287, showcasing a remarkable balance of innovative engineering and user-friendly features. With a strong emphasis on compact construction, the cylinder is perfect for applications requiring efficient use of space while maintaining robust performance. Its easy-to-clean design adds to its practicality, making it a suitable choice for various industrial environments. The series CCI excels in applications demanding long strokes, optimised cycle times, and enhanced moving mass management. Quick and straightforward sensor installation across all sides of the cylinder length further enhances its versatility, ensuring seamless integration into your systems. Ideal for industries seeking reliable and efficient pneumatic solutions, the series CCI compact cylinder stands as a testament to exceptional engineering prowess.

Designed for precise and reliable performance in industrial applications
Optimised for efficient cycle times and handling of moving masses
Features elastic cushioning for smooth operation and reduced wear
Piston with integrated magnet for effective sensing applications
Available with economical ATEX certification options for challenging environments
Robust aluminium construction ensures long-lasting durability
Simple to maintain, with components that facilitate easy cleaning
Wide operational temperature range from -20°C to +80°C for diverse climates
Piston rod is crafted from stainless steel for enhanced strength
Customisation options allow for specific industrial requirements

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001367
Bore	50mm
Stroke	100mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
