AVENTICS R422001394 Pneumatic Compact Cylinder - , 25mm Bore, 5mm Stroke, CCI Series, Single Acting

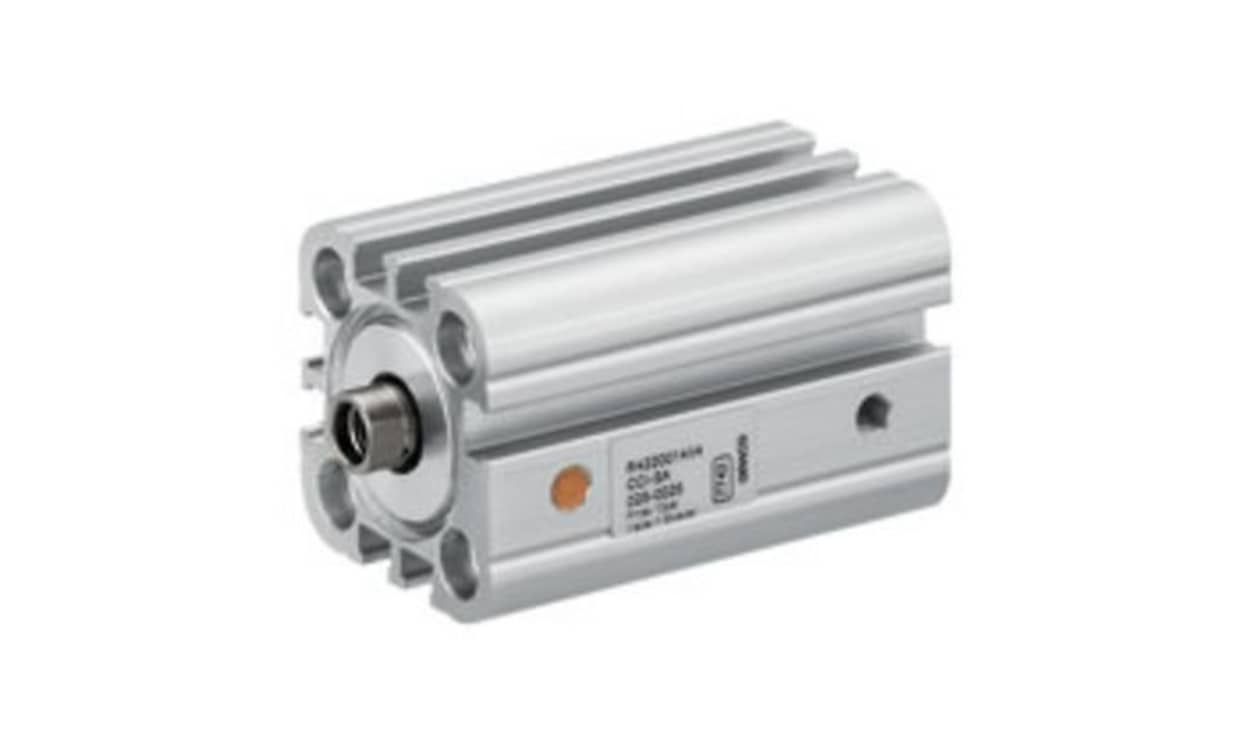

Name: AVENTICS R422001394 Pneumatic Compact Cylinder - , 25mm Bore, 5mm Stroke, CCI Series, Single Acting
Brand: Aventics
SKU: R422001394
Availability: OutOfStock

Part Number : R422001394

Availability: Sold out

Detailed Description
Specifications

The Aventics series CCI compact cylinder, designed according to ISO 21287, showcases cutting-edge engineering with its compact dimensions, ensuring versatile application in various industrial settings. Renowned for its ease of maintenance and superior functionality, this cylinder delivers remarkable performance, particularly for applications demanding long strokes and optimal cycle times. Its lightweight design, combined with a robust build, empowers manufacturers to maximise productivity without compromising on quality. The series CCI features user-friendly mounting options, allowing for sensors to be installed effortlessly along the entire length of the cylinder. With its reliable single-acting mechanism and efficient cushioning system, it offers a seamless integration into any automation system, driving efficiency and consistency in operations.

Compact design enhances installation flexibility
User-friendly sensor mounting on all cylinder sides
Single-acting operation allows for reduced complexity
Designed for ambitious stroke lengths, increasing application versatility
Optimised cushioning provides smooth operation and reduced wear
Lightweight structure aids in application efficiency
Dependable performance across a broad temperature range
Compatible with various media, ensuring versatile usage
Robust construction materials offer durability in demanding environments

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001394
Action	Single
Stroke	5mm
Bore	25mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
