AVENTICS R422001398 Pneumatic Compact Cylinder - R422001408, 63mm Bore, 5mm Stroke, CCI Series, Single Acting

Name: AVENTICS R422001398 Pneumatic Compact Cylinder - R422001408, 63mm Bore, 5mm Stroke, CCI Series, Single Acting
Brand: Aventics
SKU: R422001398
Availability: OutOfStock

Part Number : R422001398

Availability: Sold out

Detailed Description
Specifications

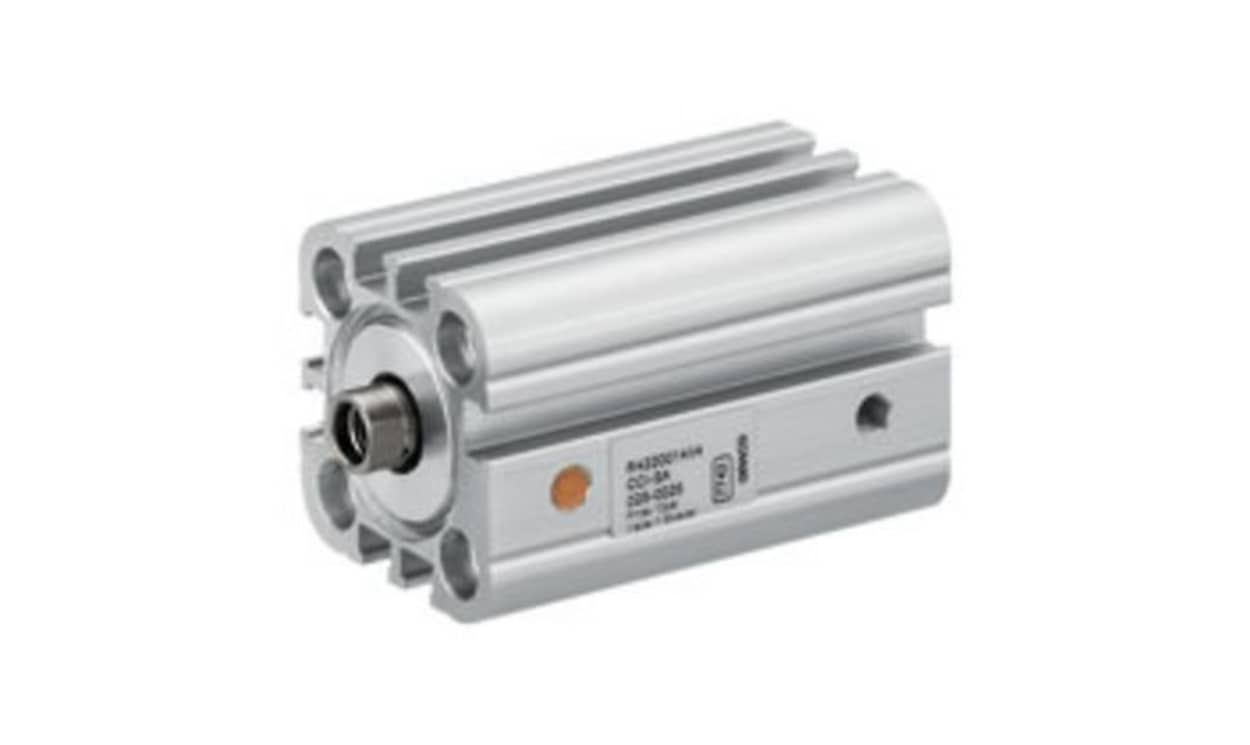

The Aventics Series CCI Compact Cylinder, designed in accordance with ISO 21287 standards, represents a pinnacle of engineering excellence in pneumatic technology. Ideal for applications requiring precision and efficiency, this compact cylinder features a unique configuration that allows for expedited installation of sensors across its entire length. Its innovative design caters to industry demands for enhanced cycle times and effective management of moving masses. Built for reliability, the Series CCI effortlessly combines robust construction with an easy-to-clean surface, making it suitable for diverse industrial environments. Embrace operational efficiency and performance with this state-of-the-art solution that promises to elevate your automation processes.

Optimised for long strokes, enhancing operational versatility
Single-acting functionality, ensuring retraction without pressure
Elastic cushioning that provides gentle operation and reduces wear
Magnetic piston for reliable sensing and performance
Constructed to meet stringent environmental requirements, ensuring durability
Standard internal thread piston rod for easy integration
Pressure specifications ranging from 2 to 10 bars for varied applications
Lightweight design facilitates easy handling and installation
Suitable for a wide temperature range, suitable for diverse operational contexts
Made from high-quality materials, ensuring longevity and dependable performance

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001408
Bore	63mm
Stroke	5mm
Action	Single
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
