AVENTICS R422001418 Pneumatic Compact Cylinder - , 63mm Bore, 15mm Stroke, CCI Series, Single Acting

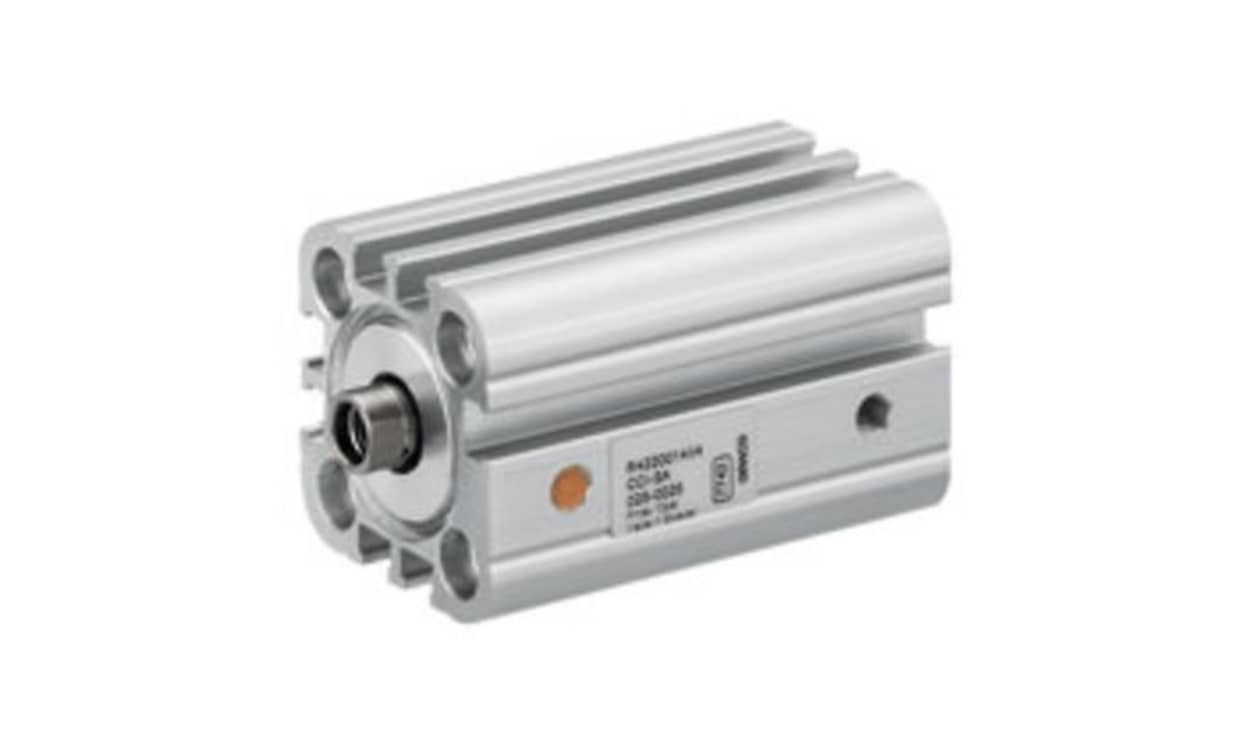

Name: AVENTICS R422001418 Pneumatic Compact Cylinder - , 63mm Bore, 15mm Stroke, CCI Series, Single Acting
Brand: Aventics
SKU: R422001418
Availability: OutOfStock

Part Number : R422001418

Availability: Sold out

Detailed Description
Specifications

The Aventics Compact Cylinder from the series CCI is engineered to deliver outstanding performance and efficiency in various industrial applications. Built to ISO 21287 standards, it boasts a robust design focusing on cleanliness and ease of maintenance, making it suitable for environments where hygiene and reliability are paramount. Its innovative engineering supports long strokes while optimising cycle times, ensuring high efficiency with moving masses. The versatile product design allows for easy installation of sensors along the entire length of the cylinder, enhancing operational flexibility.

Features elastic cushioning for gentle operation
Robust materials enhance durability and longevity
Complies with industry standards for reliable performance
Low maintenance design minimises downtime

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001418
Stroke	15mm
Bore	63mm
Action	Single
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
