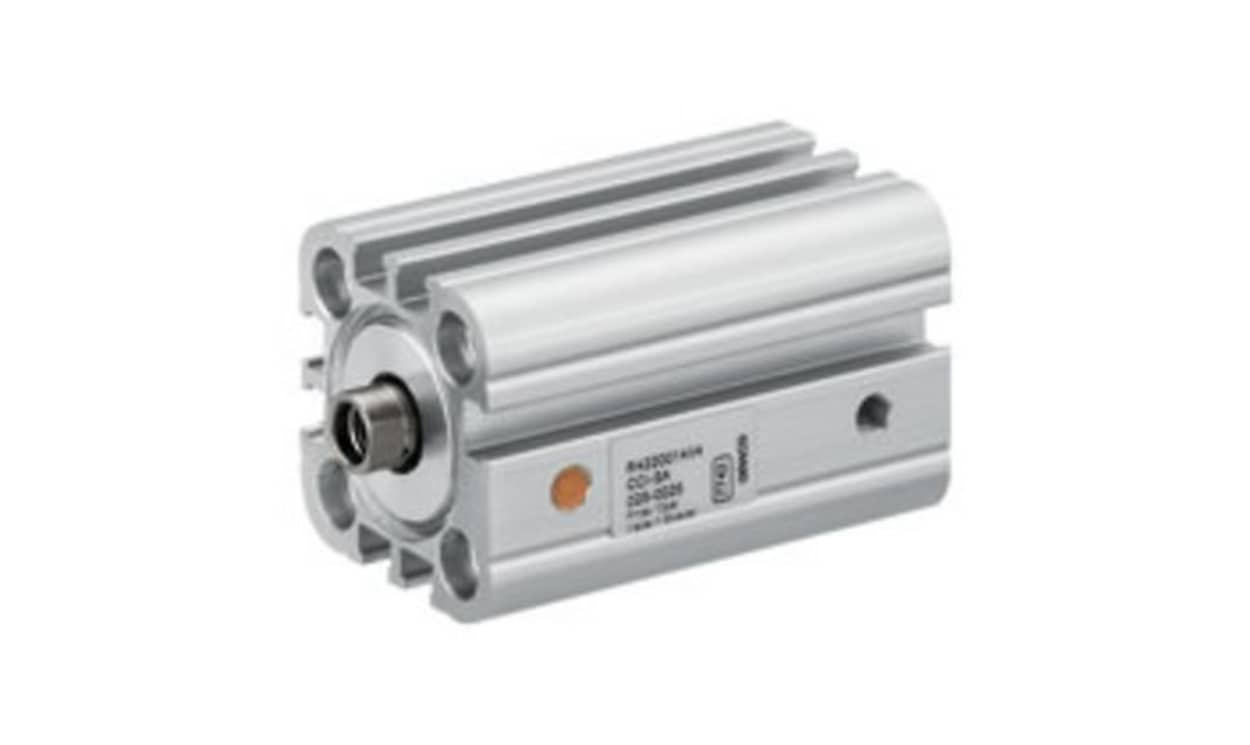

AVENTICS R422001435 Pneumatic Compact Cylinder - , 32mm Bore, 25mm Stroke, CCI Series, Single Acting

Name: AVENTICS R422001435 Pneumatic Compact Cylinder - , 32mm Bore, 25mm Stroke, CCI Series, Single Acting
Brand: Aventics
SKU: R422001435
Availability: OutOfStock

Part Number : R422001435

Availability: Sold out

Detailed Description
Specifications

The Aventics compact cylinder ISO 21287, Series CCI, represents a robust solution for applications demanding high performance without compromising on space. Engineered with innovative design principles, this cylinder stands out for its easy maintenance, being particularly suited for environments requiring efficient cleaning. The Series CCI excels in delivering extended stroke capabilities alongside optimised cycle times, making it an ideal choice for high efficiency and speed in various industrial operations. Versatile sensor installation options ensure adaptability and convenience, allowing seamless integration into existing systems. With its impressive range of features and hardy materials, this cylinder is designed to meet the rigorous demands of today’s industrial landscape.

Compact construction allows for easier installation in space-restricted areas
Single-acting design contributes to energy efficiency and simplified operation
Elastic cushioning technology enhances performance by reducing impact forces
Magnetic piston enables reliable sensing capabilities for precise control
Wide ambient temperature range ensures operation in varying environments
Constructed from durable materials to withstand harsh industrial conditions
Compliant with ISO 21287 standards for reliability and consistency

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001435
Action	Single
Stroke	25mm
Bore	32mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
