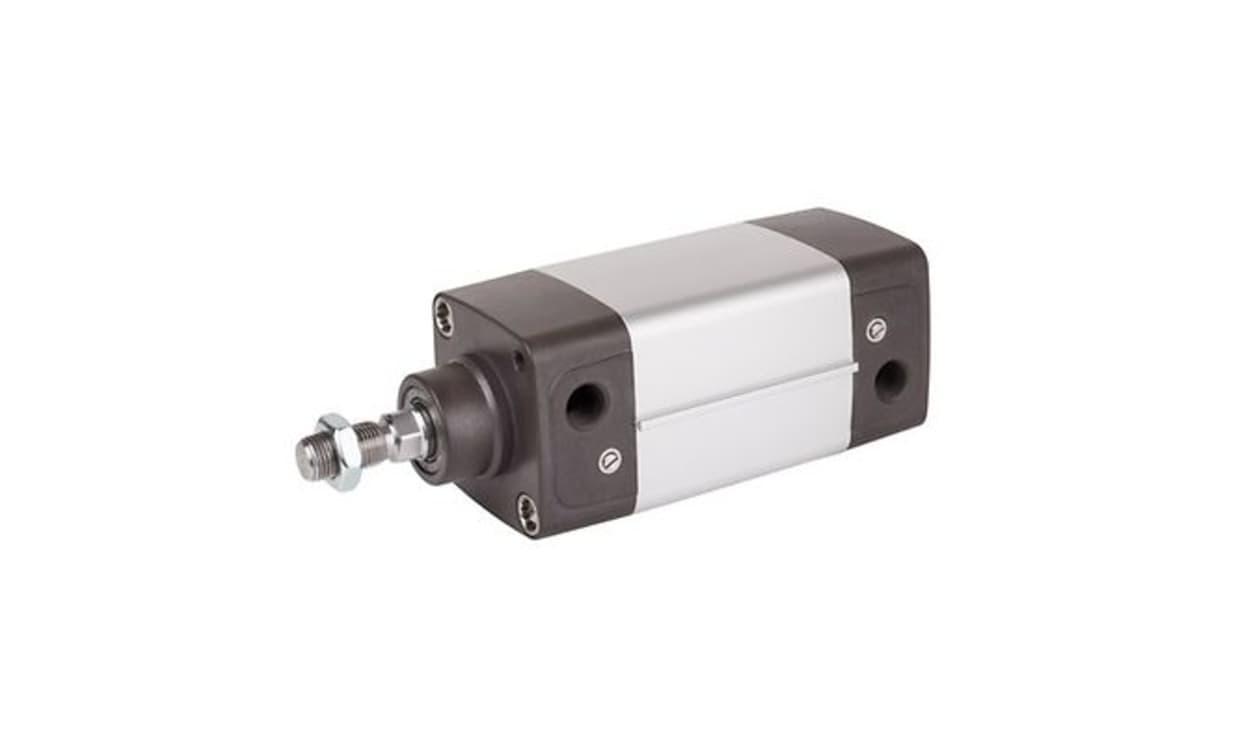

AVENTICS R480060067 Pneumatic Piston Rod Cylinder - , 80mm Bore, 320mm Stroke, CCL-IS Series, Double Acting

Name: AVENTICS R480060067 Pneumatic Piston Rod Cylinder - , 80mm Bore, 320mm Stroke, CCL-IS Series, Double Acting
Brand: Aventics
SKU: R480060067
Availability: InStock

Part Number : R480060067

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics Cylinders complement the PRA series in the area of hygienic design and meet all requirements for use in the food sector. A special feature is the option to configure the air connections for supply and exhaust on just the base, which increases flexibility when designing the system's tubing concept.

Stainless steel piston rod
Polyester scraper
Stainless steel tie rod
Aluminium front cover

Brand	AVENTICS
Manufacturer Series	CCL-IS
Model Number p	R480060067
Bore	80mm
Action	Double
Stroke	320mm
Pneumatic Connection	G 3/8
Port Connection	G 3/8
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS R480060067 Pneumatic Piston Rod Cylinder - , 80mm Bore, 320mm Stroke, CCL-IS Series, Double Acting

DOWNLOAD CATALOG

R480060067 Datasheet - R480060067 A700000012717986

R480060067 Datasheet - R480060067 A700000012718198
