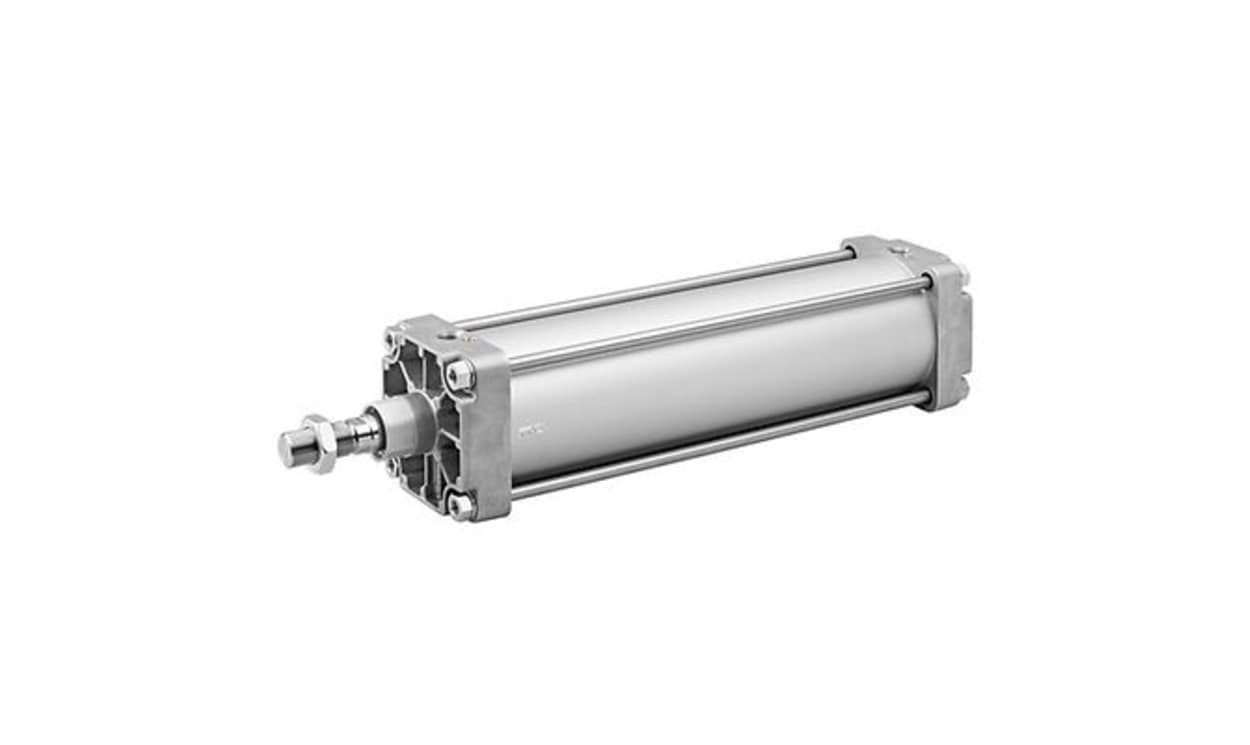

AVENTICS R480627303 Pneumatic Piston Rod Cylinder - , 160mm Bore, 320mm Stroke, ITS Series, Double Acting

Name: AVENTICS R480627303 Pneumatic Piston Rod Cylinder - , 160mm Bore, 320mm Stroke, ITS Series, Double Acting
Brand: Aventics
SKU: R480627303
Availability: OutOfStock

Part Number : R480627303

Availability: Sold out

Detailed Description
Specifications

The Aventics tie rod cylinder ISO 15552, Series ITS, is engineered for handling substantial loads seamlessly and efficiently in industrial applications. This advanced pneumatic solution boasts a robust design that facilitates exceptional performance in various environmental conditions. With its double-acting functional principle and configurable design, the Series ITS adapts effortlessly to specific operational needs. Constructed from high-quality materials, including stainless steel and die-cast aluminium, this cylinder is built to withstand the rigours of industrial environments while ensuring reliability and longevity. Its adjustable pneumatic cushioning allows for smooth operation and minimises wear, enhancing overall cycle performance. Ideal for a wide range of applications, the Series ITS also features optional ATEX certification for use in potentially explosive environments, making it a versatile choice for demanding conditions.

Double-acting design for improved efficiency and functionality
Pneumatic adjustable cushioning reduces impact and wear over time
Constructed from durable materials, ensuring long-term reliability
Configurable to meet a variety of application needs with ease
ATEX certification available for safe operation in hazardous environments
Wide temperature range capabilities support diverse operational settings
Minimal ambient and medium temperature requirements enhance usability
Lightweight design ensures easier handling and installation

Brand	AVENTICS
Manufacturer Series	ITS
Model Number p	R480627303
Stroke	320mm
Bore	160mm
Action	Double
Pneumatic Connection	G 3/4
Port Connection	G 3/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
