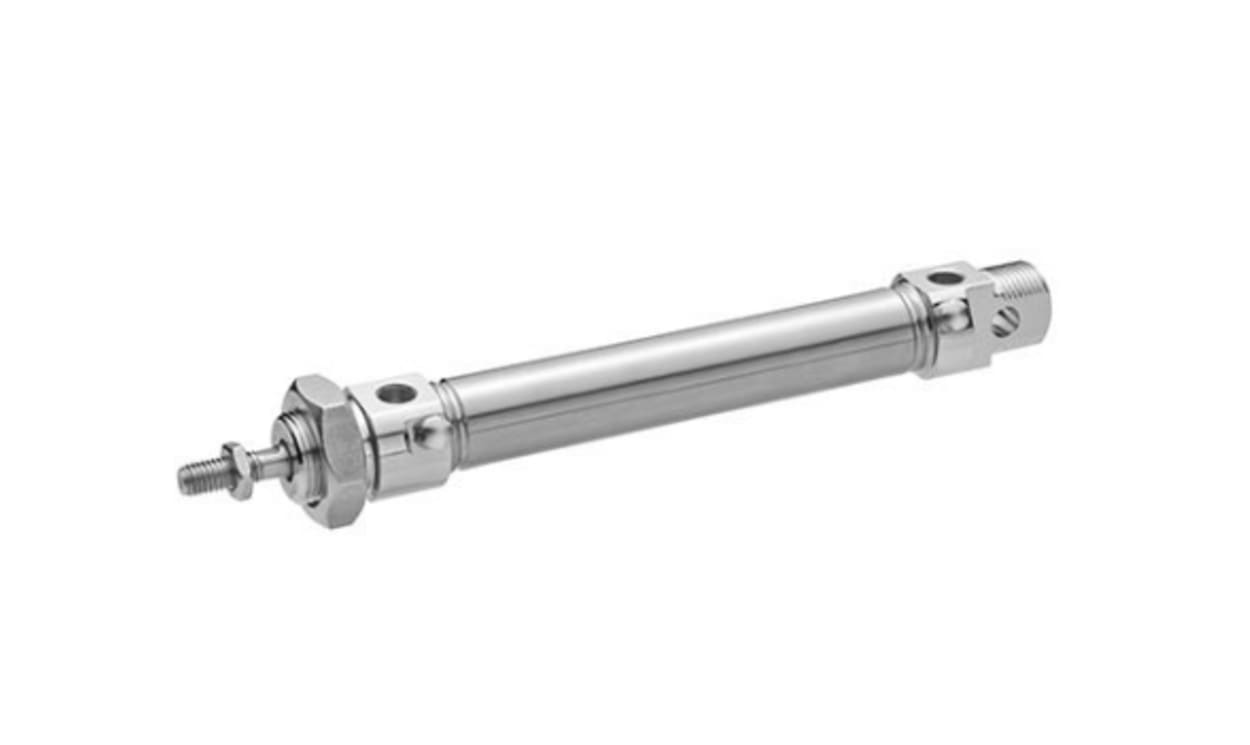

AVENTICS R480651374 | CSL-RD Roundline Pneumatic Cylinder | 16 mm Bore, 320 mm Stroke, M5 Ports

Name: AVENTICS R480651374 | CSL-RD Roundline Pneumatic Cylinder | 16 mm Bore, 320 mm Stroke, M5 Ports
Brand: Aventics
SKU: R480651374
Availability: InStock

Part Number : R480651374

Part R480651374 from AVENTICS is a double-acting CSL-RD roundline cylinder sized at 16 mm bore, 320 mm stroke. Maximum pressure for the 16 mm bore version is 10 bar, and it follows ISO 6432.

R480651374: 16 mm bore, 320 mm stroke
Port size M5 on part R480651374
Rod thread gender male, part R480651374
Cushioning type pneumatic adjustable on R480651374
Rated ambient -20 to +80 °C for part R480651374
Belongs to the CSL-RD series (double acting), R480651374

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R480651374
Action	Double
Stroke	320mm
Bore	16mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R480651374 | CSL-RD Roundline Pneumatic Cylinder | 16 mm Bore, 320 mm Stroke, M5 Ports

DOWNLOAD CATALOG

R480651374 Datasheet - R480651374 A700000012669709

R480651374 Datasheet - R480651374 A700000012669929
