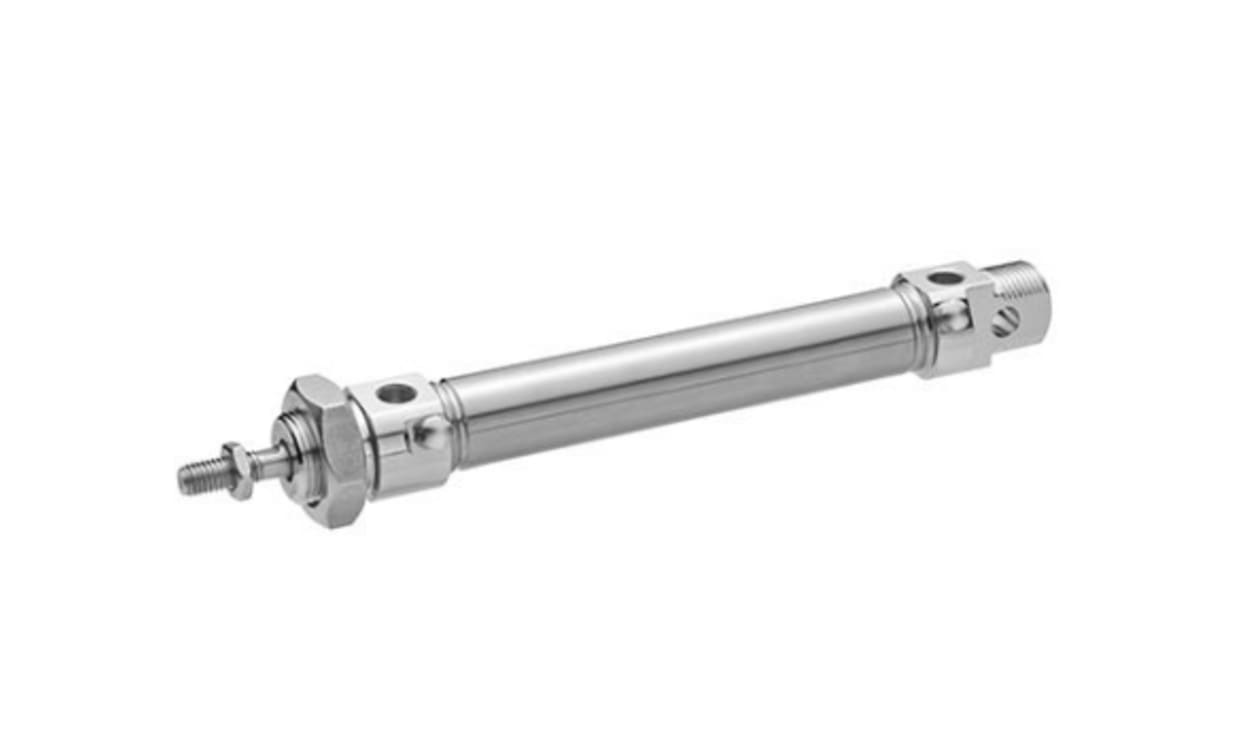

AVENTICS R480651395 Roundline Cylinder - , 25mm Bore, 250mm Stroke, CSL-RD Series, Double Acting

Name: AVENTICS R480651395 Roundline Cylinder - , 25mm Bore, 250mm Stroke, CSL-RD Series, Double Acting
Brand: Aventics
SKU: R480651395
Availability: InStock

Part Number : R480651395

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R480651395
Stroke	250mm
Action	Double
Bore	25mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R480651395 Roundline Cylinder - , 25mm Bore, 250mm Stroke, CSL-RD Series, Double Acting

DOWNLOAD CATALOG

R480651395 Datasheet - R480651395 A700000012670102

R480651395 Datasheet - R480651395 A700000012670300
