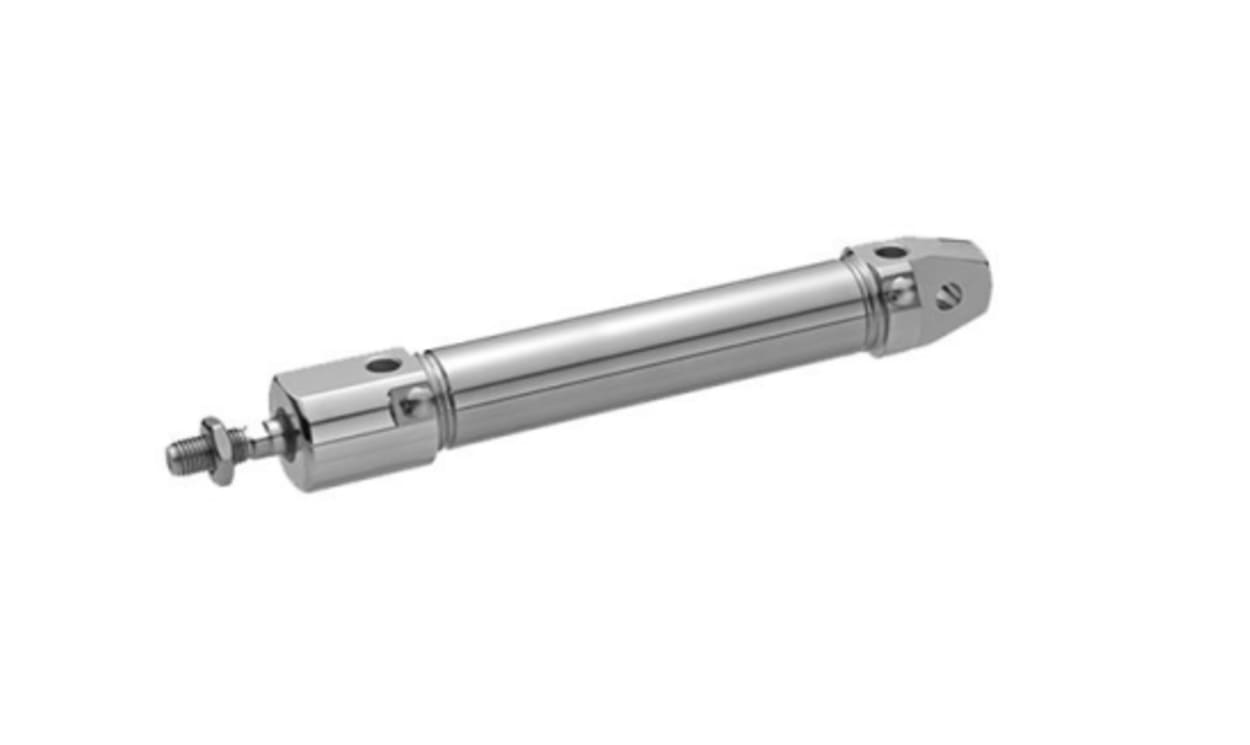

AVENTICS R480651430 Roundline Cylinder - , 25mm Bore, 400mm Stroke, CSL-RD Series, Double Acting

Name: AVENTICS R480651430 Roundline Cylinder - , 25mm Bore, 400mm Stroke, CSL-RD Series, Double Acting
Brand: Aventics
SKU: R480651430
Availability: InStock

Part Number : R480651430

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R480651430
Action	Double
Stroke	400mm
Bore	25mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS R480651430 Roundline Cylinder - , 25mm Bore, 400mm Stroke, CSL-RD Series, Double Acting

DOWNLOAD CATALOG

R480651430 Datasheet - R480651430 A700000012670709

R480651430 Datasheet - R480651430 A700000012670815
