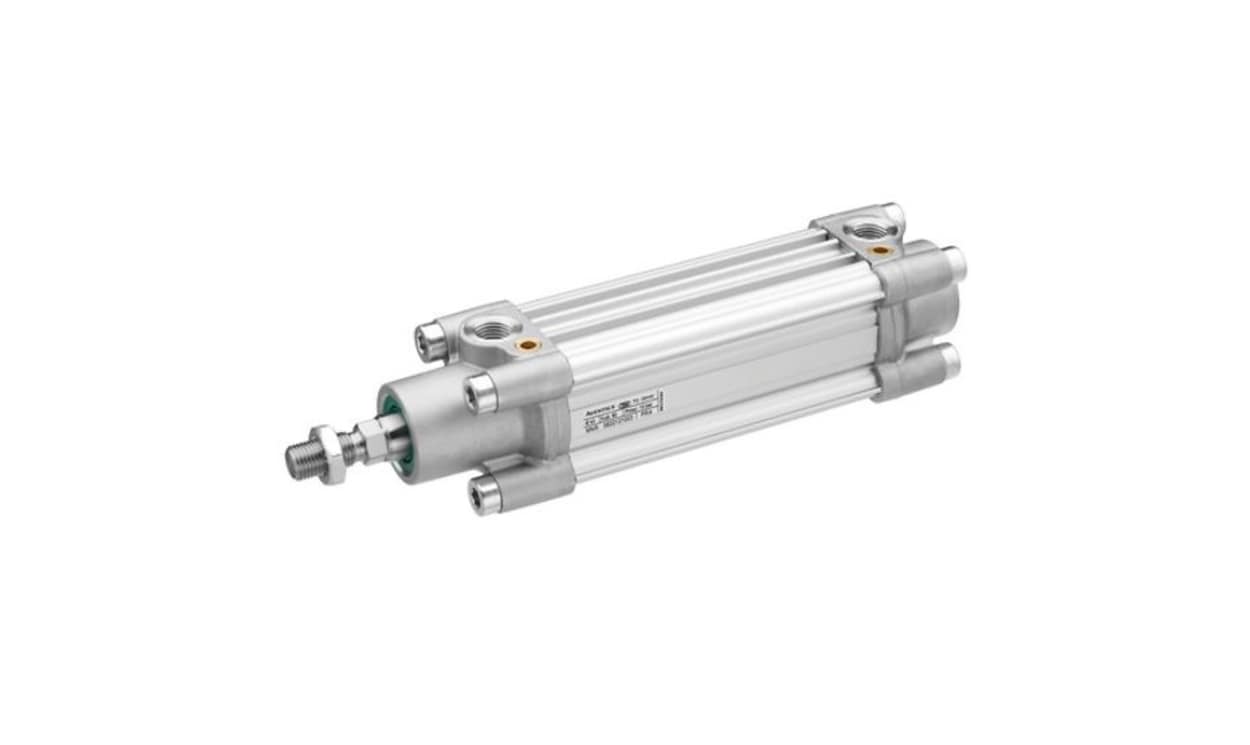

AVENTICS R481601998 ISO Standard Cylinder - , 50mm Bore, 250mm Stroke, PRA Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R481601998 ISO Standard Cylinder - , 50mm Bore, 250mm Stroke, PRA Series, Double Acting

Name: AVENTICS R481601998 ISO Standard Cylinder - , 50mm Bore, 250mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R481601998
Availability: OutOfStock

Part Number : R481601998

Availability: Sold out

Detailed Description
Specifications

The Aventics PRA series profile cylinder, designed to meet the ISO 15552 standard, offers a robust and efficient solution for various industrial applications. Ideal for automation technology and machine construction, this cylinder features a compact design coupled with integrated sensor slots, ensuring versatility across diverse environments. With a stroke length of up to 1500 mm and double-acting functionality, the PRA series is engineered to deliver reliable performance under standard industrial conditions. Its high maximum working pressure of 10 bar and adjustable cushioning system enhance operational efficiency while maintaining the utmost safety standards. The cylinder's advanced design accommodates both general and specific industry requirements, making it an essential component for those seeking durability and precision in their automation processes.

Pneumatic adjustable cushioning ensures smooth operation
Compatible with various industrial standards for enhanced versatility
Robust construction materials enhance longevity and reliability
Compact design allows for easy integration into existing systems
Cushioning energy absorption contributes to operational safety
Integrated sensor slots facilitate quick installation of sensors
Double-acting functionality provides efficient performance across cycles
Wide temperature operating range supports diverse environments
Minimal ambient conditions reduce risk of operational failure
Optimised piston rod thread for secure mounting options

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R481601998
Stroke	250mm
Action	Double
Bore	50mm
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
