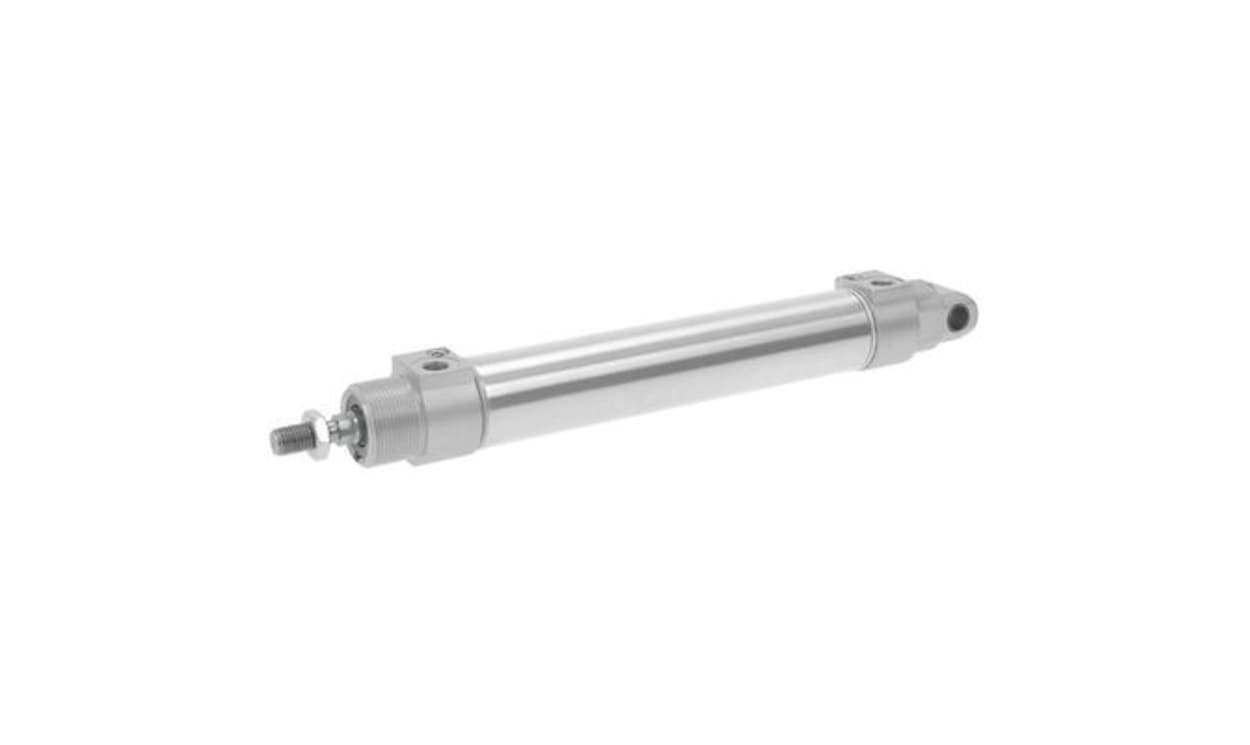

AVENTICS R481609426 Roundline Cylinder - , 32mm Bore, 250mm Stroke, RPC Series, Double Acting
- Detailed Description
- Specifications
Ideal for industries requiring stringent hygiene standards
Utilises food grade lubricants for safe operation in sensitive environments
Double-acting design provides efficient and reliable performance
Constructed with durable materials for enhanced longevity
Pneumatic adjustable cushioning ensures smooth operation
Designed to operate within a temperature range suitable for diverse applications
ATEX certification option allows deployment in explosive environments
Low maintenance requirements minimise operational downtime
Weight variations accommodate different installation needs
Brand | AVENTICS |
Manufacturer Series | RPC |
Model Number p | R481609426 |
Stroke | 250mm |
Bore | 32mm |
Action | Double |
Port Connection | G 1/8 |
Pneumatic Connection | G 1/8 |
Piston Rod Thread Gender | Male |
Cushioning Type | Pneumatic Cushioning |
Maximum Operating Pressure | 10 bar |
ISO Standard | ISO 6431 |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +80°C |
