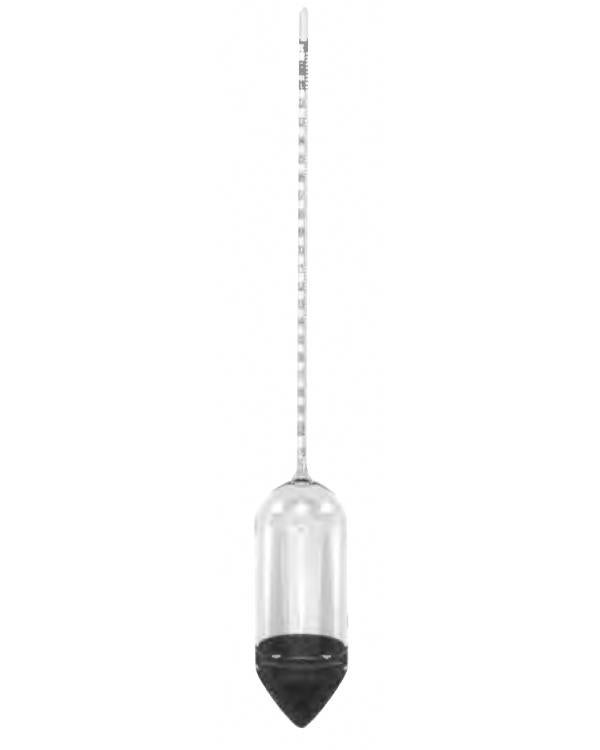

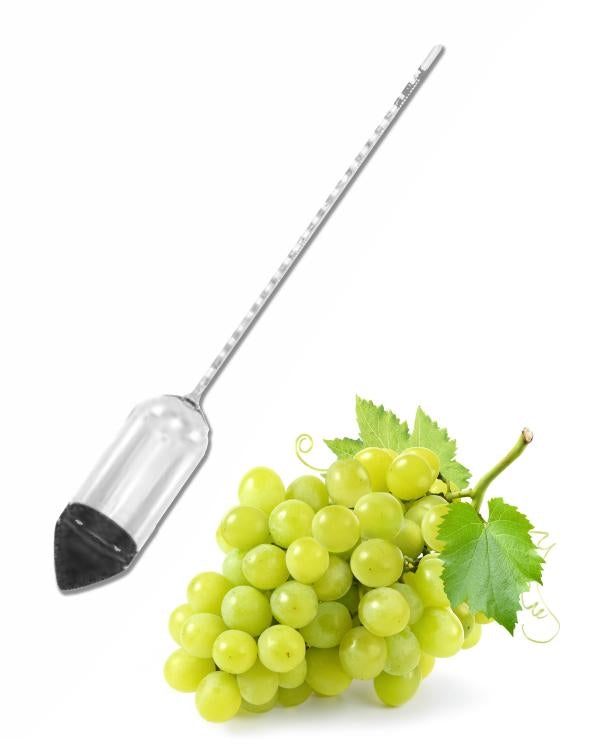

Brannan 10/810/0 | Alcohol Sikes Hydrometer | Range 0 to 20 A Sikes, 255 mm

Name: Brannan 10/810/0 | Alcohol Sikes Hydrometer | Range 0 to 20 A Sikes, 255 mm
Brand: Brannan
SKU: 10/810/0
Availability: InStock

Part Number : 10/810/0

Brannan 10/810/0 is an alcohol Sikes hydrometer covering the 0 to 20 A span of the Sikes scale, read in 0.2 divisions. It measures ethanol/water mixtures on the arbitrary Sikes scale, adjusted at 51 °F, and is used by distillers to determine the strength of spirits as proof, strength and percentage values.

Key features

For ethanol/water mixtures
Sikes scale adjusted at 51 °F
Accuracy ±0.2
255 mm maximum length, 31 mm bulb
Supplied in a protective, resealable plastic tube
Made in UK

Can be supplied with either a UKAS or a traceable calibration certificate.

Availability: in stock

Specifications
Downloads

Part Number	10/810/0
Brand	Brannan
Range	0 to 20 A (Sikes)
Scale	Sikes, adjusted at 51 °F
Divisions	0.2
Accuracy	±0.2
Max length	255 mm
Bulb diameter	31 mm
Material	Soda glass, steel shot ballast, synthetic wax resin
Approx weight	105 g (incl. 45 g protective tube)
Origin	Made in UK
