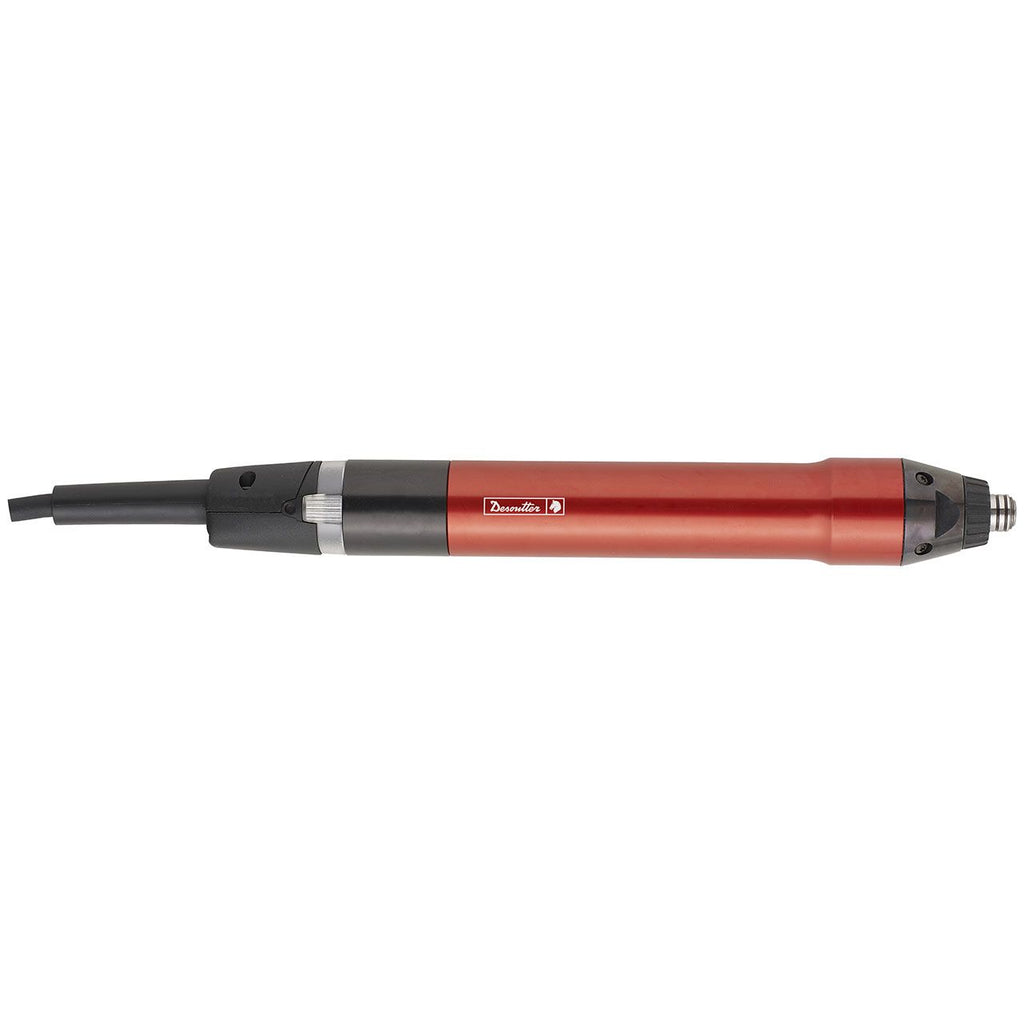

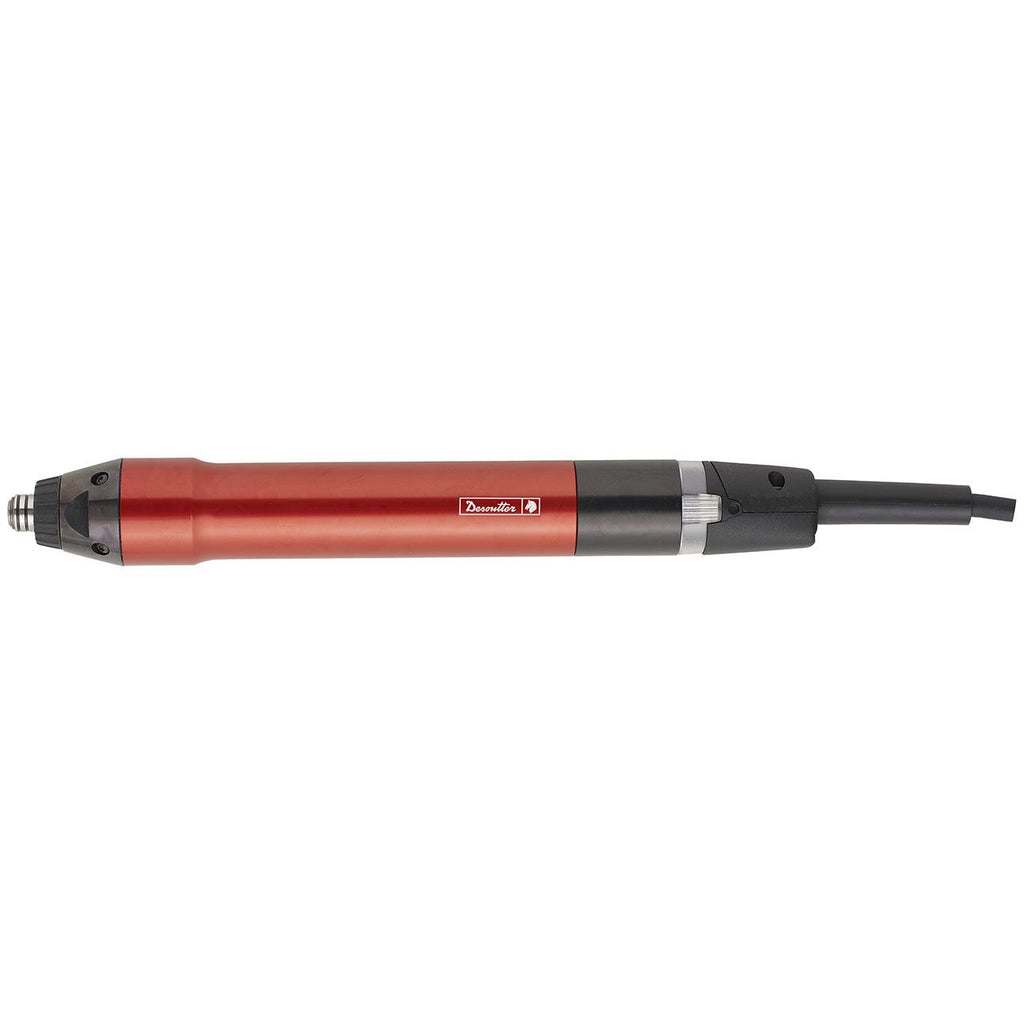

Desoutter ERSF6-03 | Transducerized Fixtured Electric Screwdriver | 6 Nm, 1720 rpm, 1/4 in Hex
The Desoutter ERSF6-03 (part number 6151660690) delivers up to 6 Nm at a free speed of 1720 rpm through a 1/4 in Hex output. The ERSF6-03 comes from the ERS transducerized family, which combines an angle sensor, high-speed brushless motor and precise transducer. This ERSF6-03 reference has no on-tool start device, measures 299 mm and weighs 0.7 kg.
Key features
- Reversible operation on the ERSF6-03 1/4 in Hex drive
- Sound power of <70 dB(A) on the ERSF6-03
- Extensive communication options support automation with the ERSF6-03
- Built-in transducer and software give the ERSF6-03 multiple tightening possibilities
- Torque and angle control on the ERSF6-03 supports consistent tightening quality
- Brushless motor and long-life gears keep ERSF6-03 maintenance and lifecycle costs low
- Specifications
- Downloads
| Part Number | 6151660690 |
| Model | ERSF6-03 |
| Brand | Desoutter |
| Tool type | Inline |
| Max torque in forward | 6 Nm (4.4 ft.lbf) |
| Free Speed | 1720 rpm |
| Output drive type | Hex |
| Output drive size (in) | 1/4 |
| Torque Control System | Shut-off-transducer |
| Starting system | None |

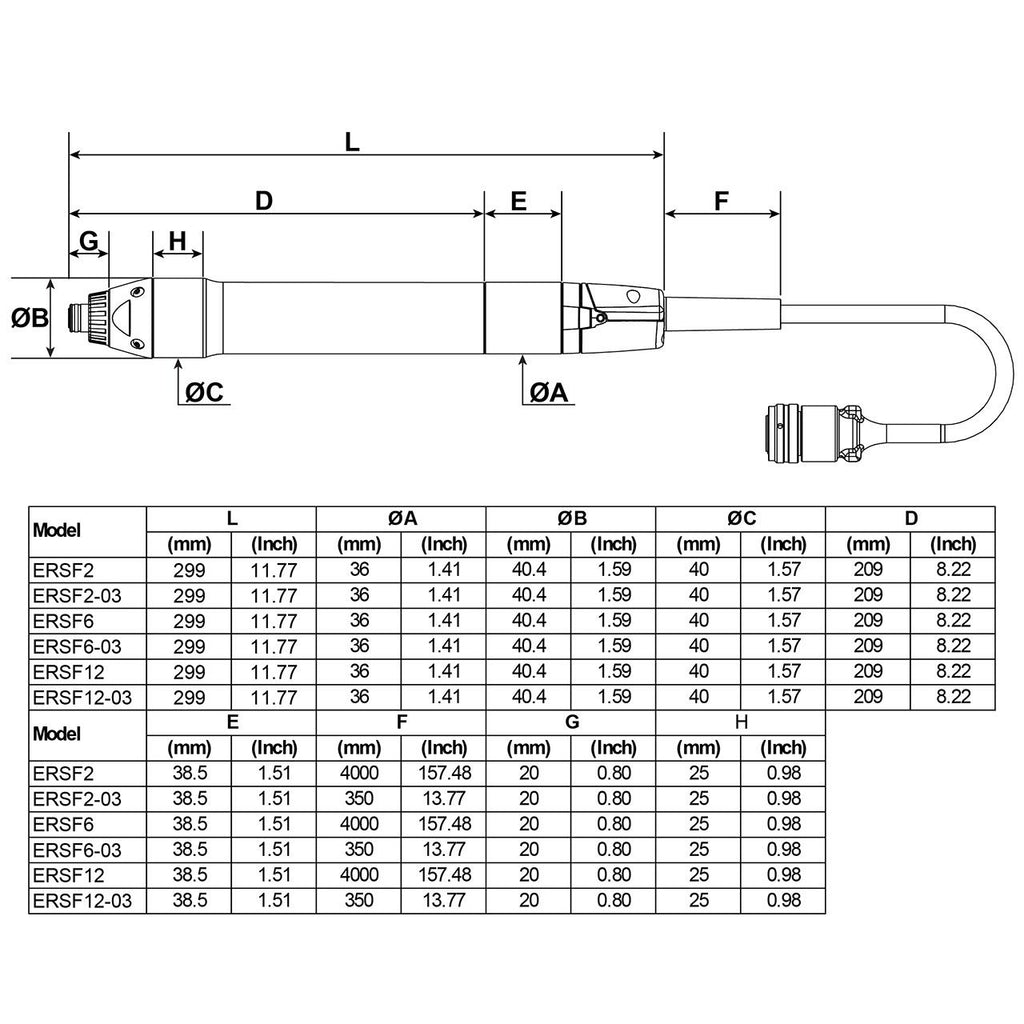

| Length (L) | 299 mm (11.77 in) |
| Weight | 0.7 kg (1.54 lb) |
| Reversible | Yes |
| Sound Power (dba) | <70 |
