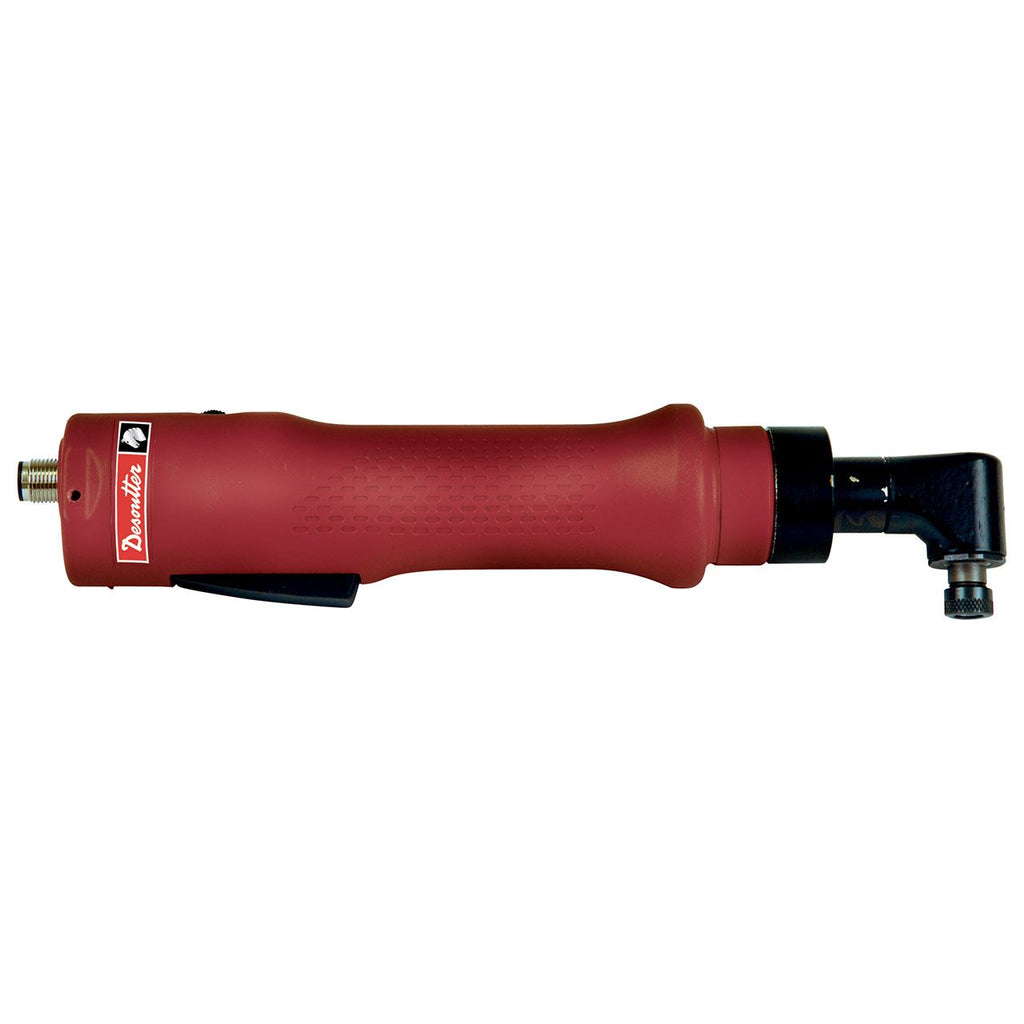

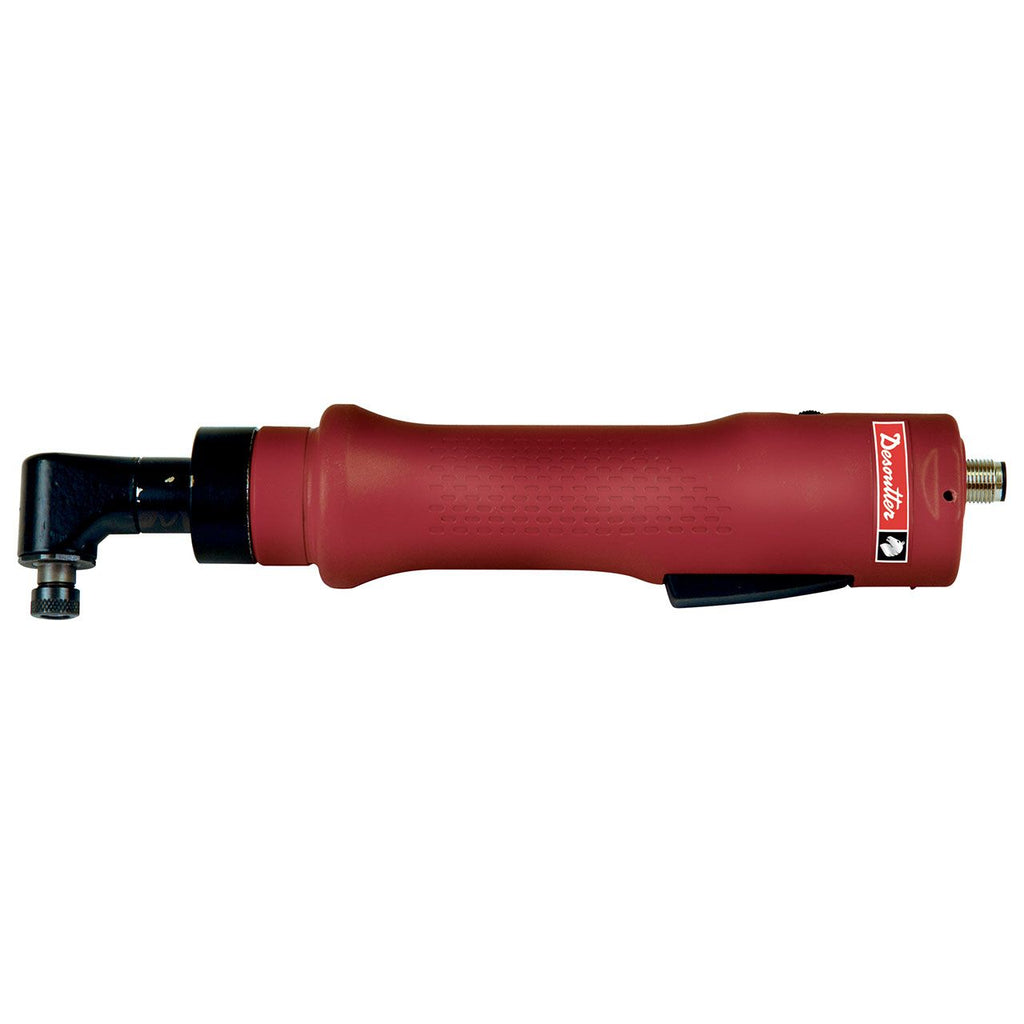

Desoutter SLC100-L600-C90A4H | Low Voltage Current Control Angle-Head Screwdriver | 10 Nm, 600 rpm, 1/4 in Hex
Rated up to 10 Nm with 600 rpm free speed and a 1/4 in Hex drive, the SLC100-L600-C90A4H (6151654790) is a Desoutter low voltage current control angle-head screwdriver. SLC tools such as the SLC100-L600-C90A4H are multi-torque low voltage current control screwdrivers, available across straight, angle head and pistol styles. With lever start, the SLC100-L600-C90A4H is 235.7 mm long and weighs 0.7 kg.
Key features
- Reversible operation on the SLC100-L600-C90A4H 1/4 in Hex drive
- Sound power <70 dB(A) and vibration <2.5 m/s² on the SLC100-L600-C90A4H
- Speed adjustment is possible on the SLC100-L600-C90A4H
- Homogeneous fastening solution for assembly lines using the SLC100-L600-C90A4H
- The SLC100-L600-C90A4H suits simple through to advanced applications
- Specifications
- Downloads
| Part Number | 6151654790 |
| Model | SLC100-L600-C90A4H |
| Brand | Desoutter |
| Tool type | Angle head |
| Max torque in forward | 10 Nm (7.4 ft.lbf) |
| Free Speed | 600 rpm |
| Output drive type | Hex |
| Output drive size (in) | 1/4 |
| Torque Control System | Shut-off-current control |
| Starting system | Lever |
| Length (L) | 235.7 mm (9.28 in) |
| Weight | 0.7 kg (1.54 lb) |
| Reversible | Yes |
| Sound Power (dba) | <70 |
