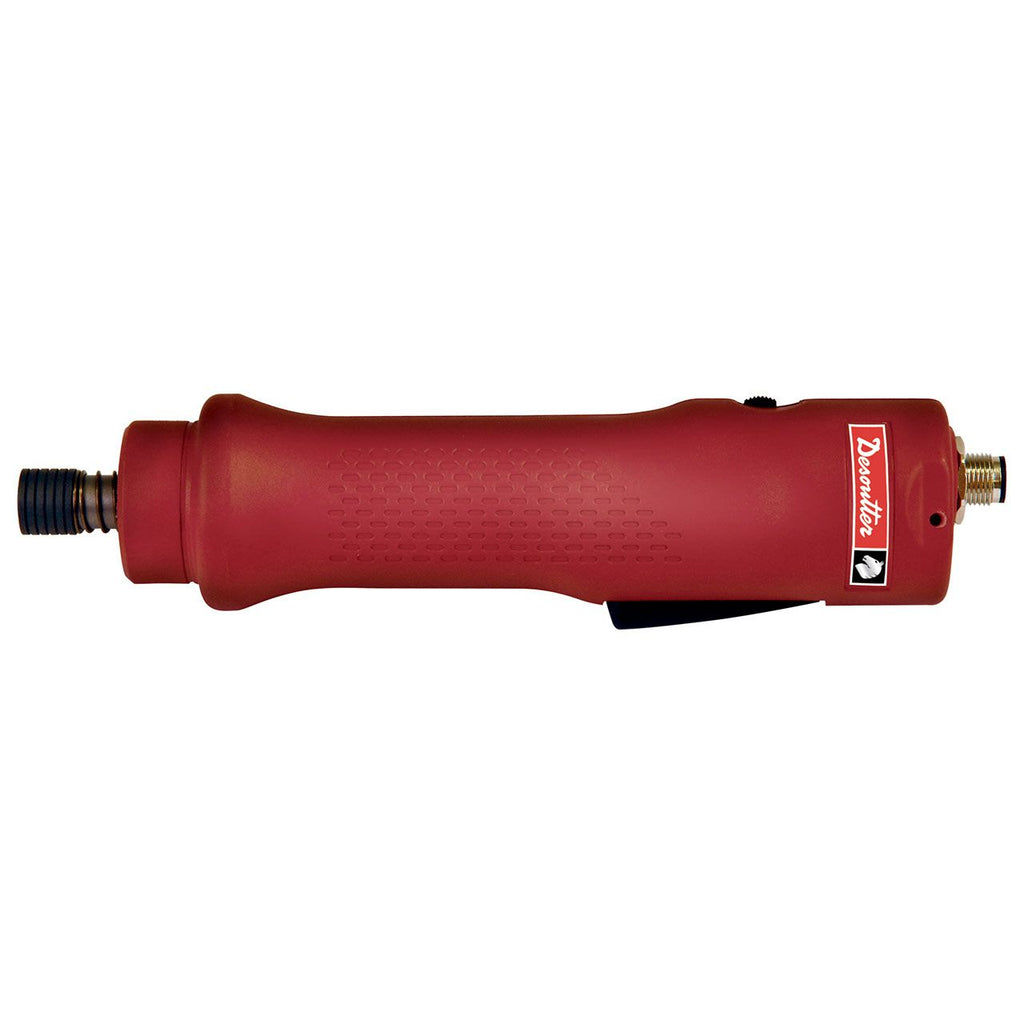

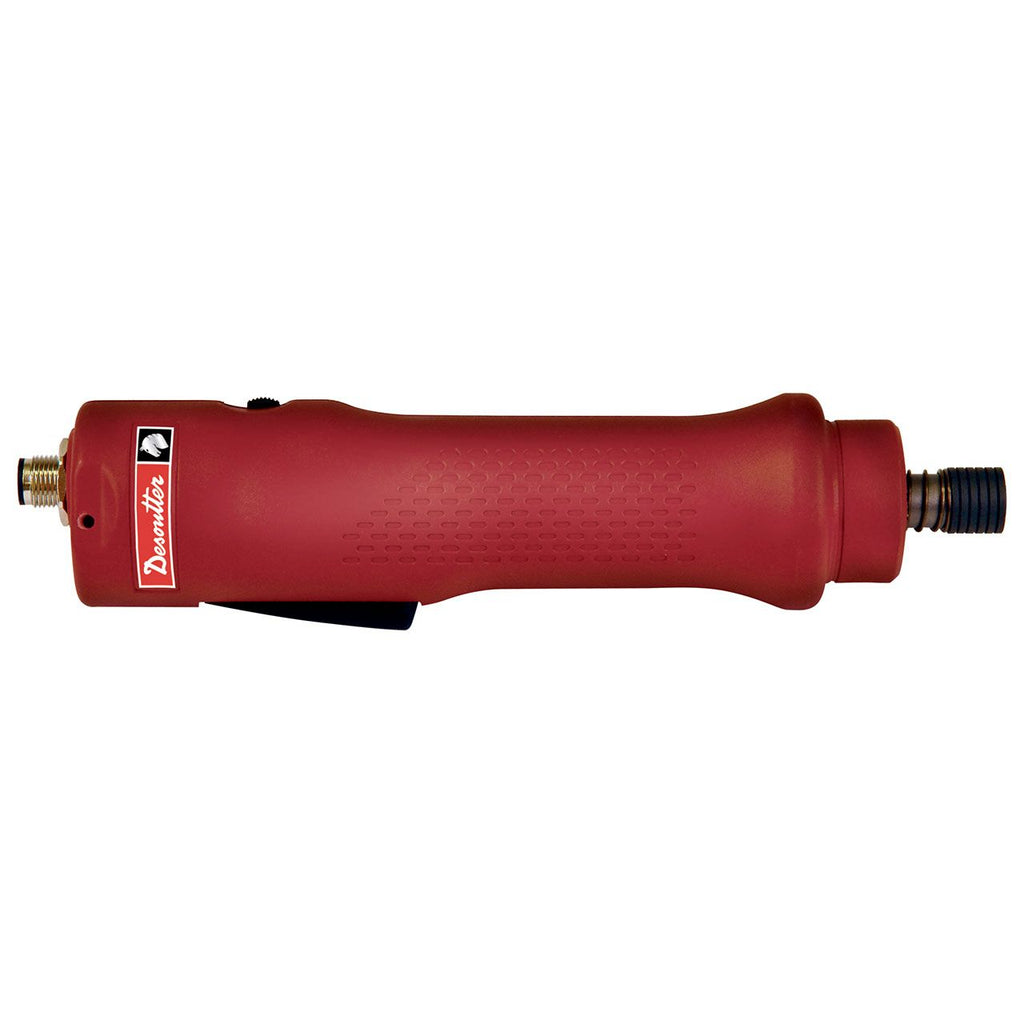

Desoutter SLC100-L600-C4Q | Low Voltage Current Control In-Line Screwdriver | 10 Nm, 600 rpm, 1/4 in Hex
The Desoutter SLC100-L600-C4Q (part number 6151654660) delivers up to 10 Nm at a free speed of 600 rpm through a 1/4 in Hex output. The SLC100-L600-C4Q belongs to the SLC low voltage current control range, a multi-torque family offered in straight, angle head and pistol formats for operator comfort. The SLC100-L600-C4Q uses lever start, measures 201.8 mm and weighs 0.5 kg.
Key features
- Homogeneous fastening solution for assembly lines using the SLC100-L600-C4Q
- Reversible operation on the SLC100-L600-C4Q 1/4 in Hex drive
- Sound power <70 dB(A) and vibration <2.5 m/s² on the SLC100-L600-C4Q
- The SLC100-L600-C4Q is a multi-torque tool from the SLC current control range
- Speed adjustment is possible on the SLC100-L600-C4Q
- Specifications
- Downloads
| Part Number | 6151654660 |
| Model | SLC100-L600-C4Q |
| Brand | Desoutter |
| Tool type | Inline |
| Max torque in forward | 10 Nm (7.4 ft.lbf) |
| Free Speed | 600 rpm |
| Output drive type | Hex |
| Output drive size (in) | 1/4 |
| Torque Control System | Shut-off-current control |
| Starting system | Lever |
| Length (L) | 201.8 mm (7.94 in) |
| Weight | 0.5 kg (1.1 lb) |
| Reversible | Yes |
| Sound Power (dba) | <70 |
