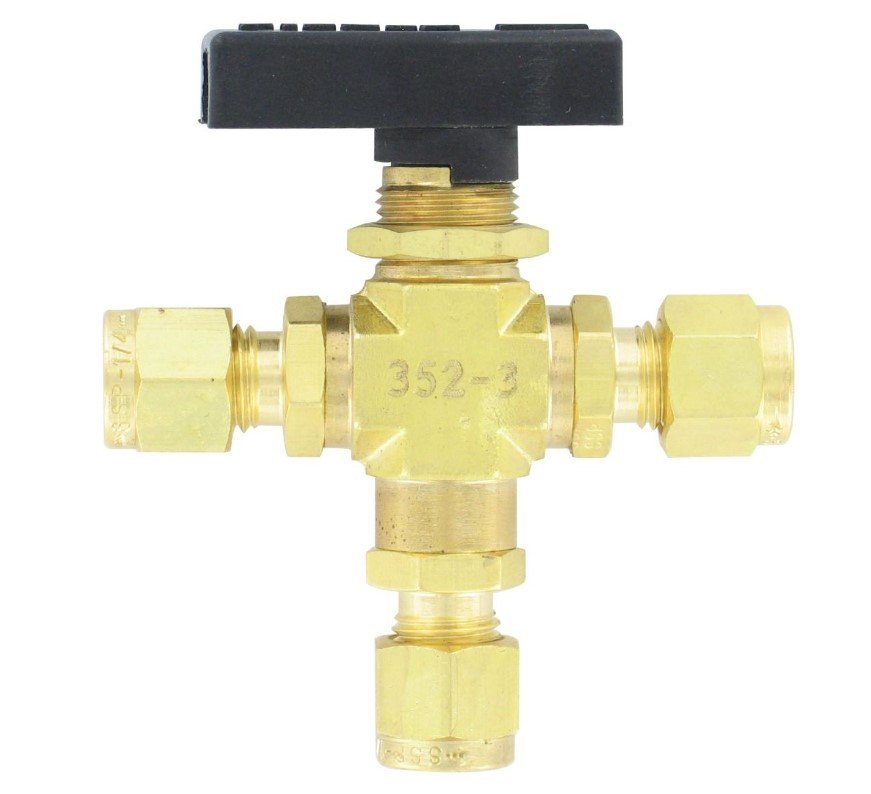

Dwyer Instruments 3MSV-BD220 | Compact 3-way ball valve | Brass | 1/4" tube | 3.18 mm orifice

Name: Dwyer Instruments 3MSV-BD220 | Compact 3-way ball valve | Brass | 1/4" tube | 3.18 mm orifice
Brand: Dwyer
SKU: 3MSV-BD220
Availability: OutOfStock

Part Number : 3MSV-BD220

In instrumentation and industrial systems, the Model 3MSV-BD220 Compact 3-Way Ball Valves are the ideal option for fluid directional control. Easy operation and a high-quality seal are guaranteed by the PTFE seats and microfinished ball. There is less pressure drop possible because of the straight through flow channel design. There are two types of valve bodies available: brass and 316 stainless steel. Additional durability and safety in the event of overpressure are provided by the blow-out-proof ball and stem.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Body	Valve: Brass
Connection	Type: Fractional Tube Fitting
Inlet	Size: 1/4"
Manufacturer	Dwyer Instruments
Material	Wetted: Body, Connector: 316 SS or brass Stem, Ball: 316 SS Stem O-ring, Connector O-ring, Back-up Rings: Fluoroelastomer Ball Seats: PTFE
Maximum Operating Pressure	1500 psig (103 bar)
Maximum operating temperature	-40 to 350°F (-40 to 176°C)
Orifice	0.125 (3.18) in (mm)
Outlet	Size: 1/4"
Type	Compact 3-way Ball Valve

The Series 3MSV Compact 3-Way Ball Valves are designed for precise directional control of fluid in instrumentation and process systems, offering versatile fluid routing options.
With a micro-finished ball and PTFE seats, these valves ensure a quality seal and easy operation, reducing the risk of leakage and simplifying maintenance.
Their straight-through flow path design allows for minimal pressure drop, ensuring efficient fluid flow and system performance.
Available in either brass or 316 stainless steel, the valve body offers a variety of options to suit different environmental and application requirements.
The valves feature a blow-out-proof ball and stem design, providing extra durability and safety by preventing failure in the event of overpressure scenarios.
