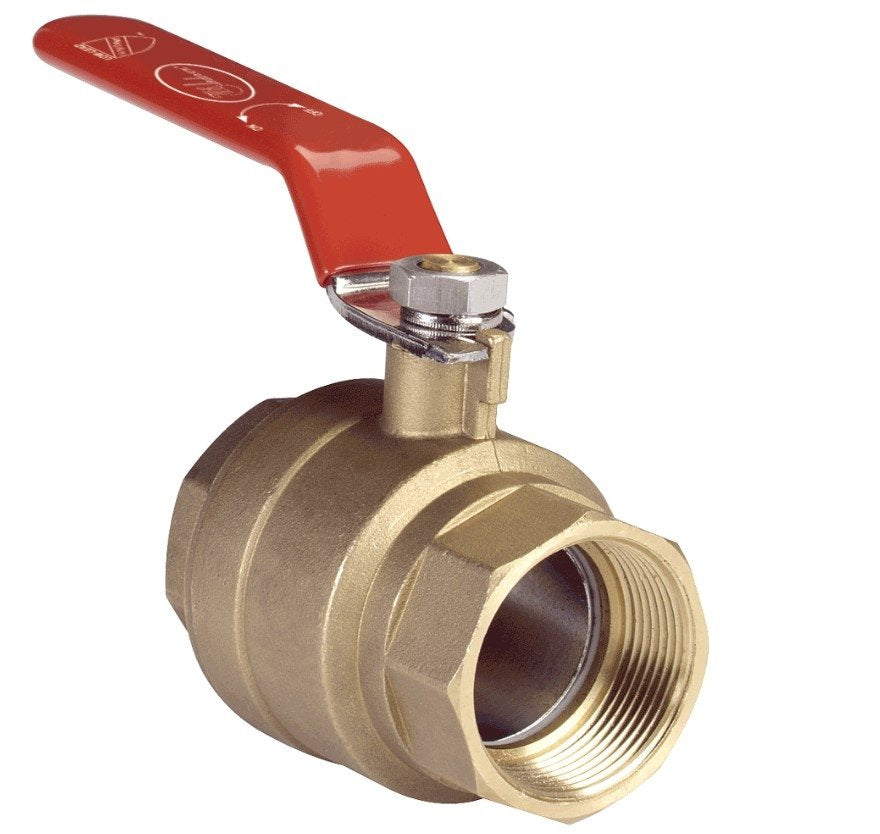

Dwyer Instruments DBV-01 | Brass ball valve | 600 psi | Full port | 3/8"

Name: Dwyer Instruments DBV-01 | Brass ball valve | 600 psi | Full port | 3/8"
Brand: Dwyer
SKU: DBV-01
Availability: OutOfStock

Part Number : DBV-01

A budget-friendly hand lever ball valve perfect for commercial or general industrial application is the Model DBV-01 Brass Ball Valve. For manual shut-off valves as well as many other uses, the Series DBV is the best option. High-grade brass is used to create the valve body, body cap, and ball for exceptional durability. For extended use, PTFE is used in the construction of the stem packing and seats. Safety is provided in the event of overpressure by the blowout-proof stem. Maximum Cv is possible with full port design while maintaining a low pressure drop.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Connection	1/4 to 3" female NPT
Manufacturer	Dwyer Instruments
Material	Other: Body Gland and Stem Nut: Brass Handle Cover: Rubber Handle: Steel
Material	Wetted: Body and Body Cap: Brass Ball: Chrome plated brass Stem: Brass Seat and Packing: PTFE
Maximum Operating Pressure	-29" Hg to 600 psi (-736 mm Hg to 41 bar) WOG
Maximum operating temperature	-40 to 365oF (-40 to 185oC)
Size	3/8"
Type	Brass Ball Valve

The Series DBV Brass Ball Valve is an economical hand lever ball valve suitable for commercial or general industrial use, offering affordability without compromising on performance.
Ideal for use as a manual shut-off valve, the Series DBV is designed to fulfill various applications beyond this primary function.
The valve body, body cap, and ball are constructed of quality brass, ensuring durability and reliability in operation.
Seats and stem packing are made of PTFE, providing long-lasting service and resistance to wear and tear, enhancing the valve's lifespan.
The valve features a blowout-proof stem design, enhancing safety by preventing stem ejection in the event of overpressure situations.
With a full port design, the valve allows for maximum Cv (flow coefficient) while still maintaining minimal pressure drop, ensuring efficient fluid flow.
