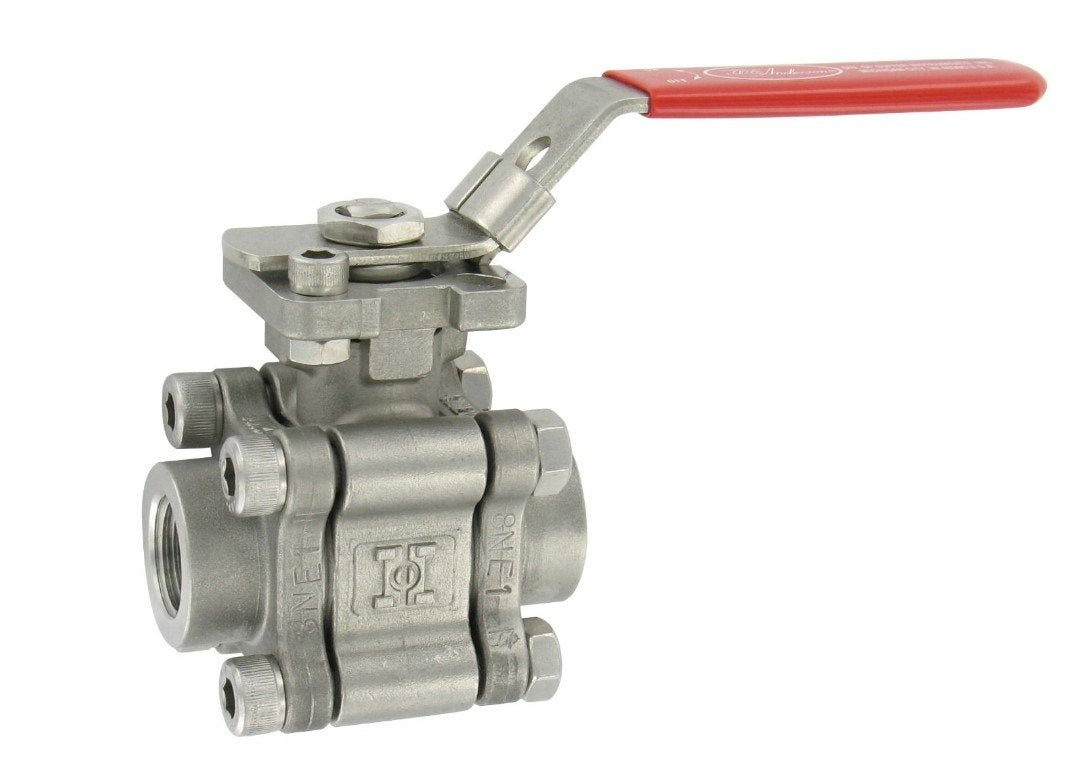

Dwyer Instruments HBV-M01 | 1/4" 3-piece alloy-c ball valve | Cv 6

Name: Dwyer Instruments HBV-M01 | 1/4" 3-piece alloy-c ball valve | Cv 6
Brand: Dwyer
SKU: HBV-M01
Availability: OutOfStock

Part Number : HBV-M01

The Hastelloy® C Ball Valve Model HBV-M01 has a number of cutting-edge design elements that enhance process efficiency. Pneumatic and electric actuators can be directly mounted with ease thanks to the ISO 5211 mounting pad. All of your automation needs can be perfectly satisfied by using the HBV series ball valve in conjunction with our high-cycle, live-loaded stem packing system.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Connection	Female NPT
Manufacturer	Dwyer Instruments
Material	Other: Body Bolt, Gland Washer, Stem Nut, Space Washer, and Handle: 304 SS Handle Cover: Vinyl
Material	Wetted: Valve Body, End Caps, Ball and Stem: ASTM 494 Type CW12MW (Hastelloy® C) Seat, Body Seal, and Stem Packing: TFM
Maximum Operating Pressure	2000 psi (137.9 bar); ASME B16.34 Class 900 (see Catalog page)
Maximum operating temperature	-20 to 425°F (-29 to 218°C)
Size	1/4"
