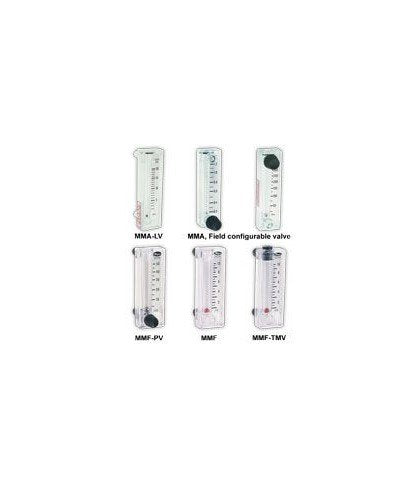

Dwyer Instruments MMF-100-TMV | Flowmeter | Range 10-100 SCFH air
Two sets of flowmeters with cutting-edge features at an affordable price, appropriate for gas and liquid applications, make up the Model MMF-100-TMV Mini-Master® Flowmeters. A user-configurable flowmeter with a 2" (51 mm) scale and non-removable top or bottom front mounted metering valves is the Series MMA. It is made of translucent nylon, which has a good chemical resistance, and it is simple to disassemble for cleaning or reconfiguration with the included key. A tiny flowmeter with a 1-1/2" (38 mm) scale that is perfect for measuring small volumes of air is the Series MMF. It has a bezel-style mounting system that may be easily mounted from the instrument panel's front.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-10% FS |
Approvals | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II) |
Connection | Process: 1/4" OD for push on rubber or plastic tubing. Connect to rigid tubing with double compression fittings |
Manufacturer | Dwyer Instruments |
Material | Wetted: Body: Styrene acrylonitrile Float: SS, black glass, nylon Valve: Polyurethane |
Maximum Operating Pressure | 50 psi (3.4 bar), Valve option: 10 psi (0.6 bar) |
Maximum operating temperature | 125°F (51°C) |
Range | 10-100 SCFH air |
Type | Flowmeter |
Weight | 0.5 oz (14.17 g) |
- Easy mounting and inexpensive installation.
- Long operational life and robust design.
- High reproducibility is possible with precision molding.
- The flow tube's white back increases reading accuracy by improving float visibility.
- Time is saved by the immediate flow reading made possible by side printed scale graduations.
- Minimal panel area is needed for compact bodies, freeing up important space.
