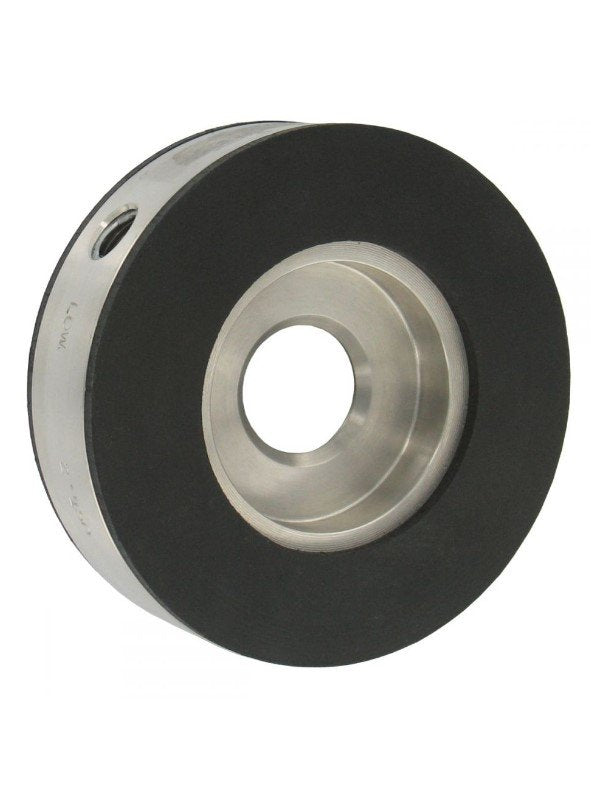

Dwyer Instruments OP-B-2 | Orifice plate flowmeter | 0.75" line size | 0.400" bore | 0.49 Beta | Water capacity: 100" d.p. W/C | 5.69 GPM flow; air capacity: 100" d.p. W/C | 20.21 SCFM @ 14.7 psia | 32.44 SCFM @ 20 psig | 60.26 SCFM @ 100 psig; 1 lb
Part Number : OP-B-2
A full orifice plate flow metering kit is offered by the Model OP-B-2 Orifice Plate Flowmeter. It has an integrated gasket and metering taps on a stainless steel orifice plate with a special holder or carrier ring. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The device may be installed by only sliding it between ordinary flanges; orifice flanges are not necessary. The Series OP may be utilized with suitable liquids and gases and comes in line diameters ranging from 1/2" to 24".
