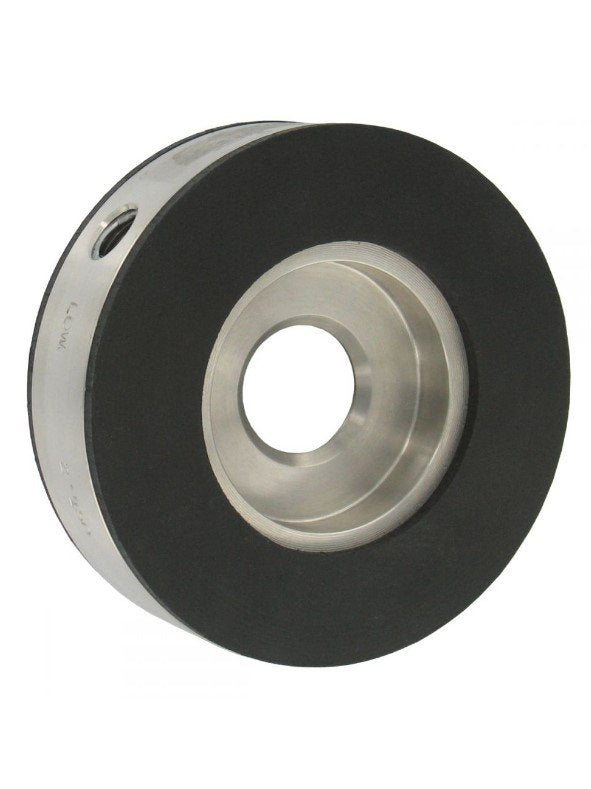

Dwyer Instruments OP-C-2 | Orifice plate flowmeter | 1" line size | 0.520" bore | 0.49 Beta | Water capacity: 100" d.p. W/C | 9.63 GPM flow; air capacity: 100" d.p. W/C | 34.2 SCFM @ 14.7 psia | 54.92 SCFM @ 20 psig | 102.09 SCFM @ 100 psig; 2 lb
Part Number : OP-C-2
A full orifice plate flow metering kit is offered by the Model OP-C-2 Orifice Plate Flowmeter. It has an integrated gasket and metering taps on a stainless steel orifice plate with a special holder or carrier ring. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The device may be installed by only sliding it between ordinary flanges; orifice flanges are not necessary. The Series OP may be utilized with suitable liquids and gases and comes in line diameters ranging from 1/2" to 24".
