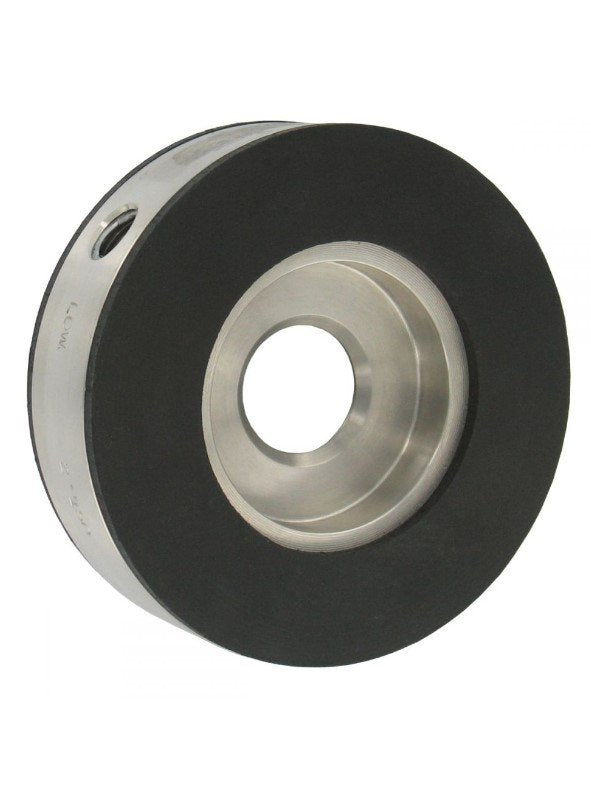

Dwyer Instruments OP-F-2 | Orifice plate flowmeter | 2" line size | 1.000" bore | 0.48 Beta | Water capacity: 100" d.p. W/C | 35.34 GPM flow; air capacity: 100" d.p. W/C | 125.74 SCFM @ 14.7 psia | 202.03 SCFM @ 20 psig | 375.8 SCFM @ 100 psig; 3 lb
Part Number : OP-F-2
A full orifice plate flow metering kit is offered by the Model OP-F-2 Orifice Plate Flowmeter. It has an integrated gasket and metering taps on a stainless steel orifice plate with a special holder or carrier ring. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The device may be installed by only sliding it between ordinary flanges; orifice flanges are not necessary. The Series OP may be utilized with suitable liquids and gases and comes in line diameters ranging from 1/2" to 24".
