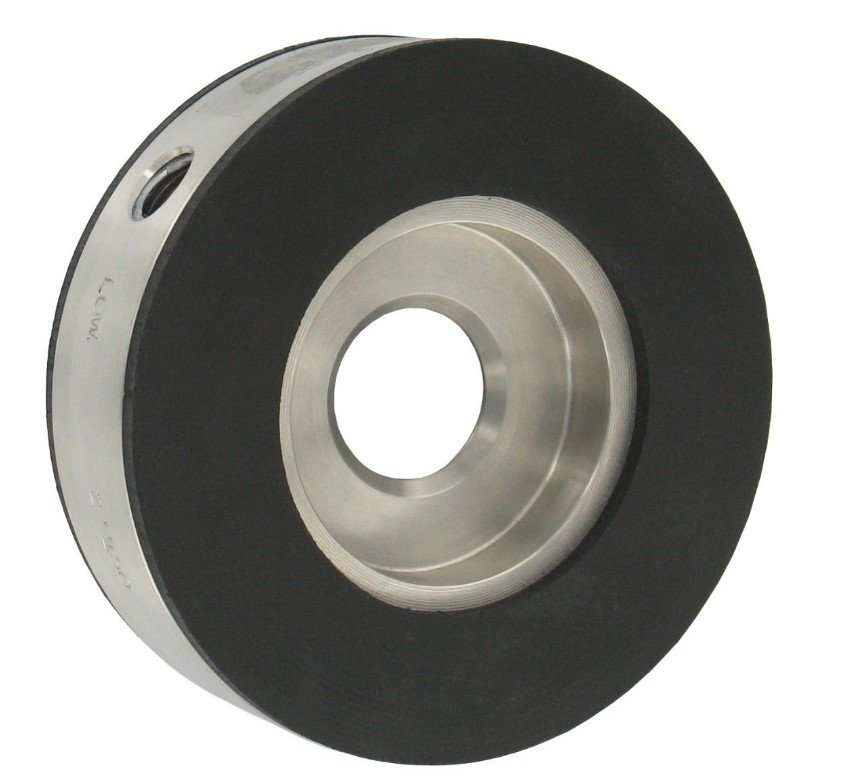

Dwyer Instruments OP-H-3 | Orifice plate flowmeter | 3" line size | 2.150" bore | 0.70 Beta | Water capacity: 320" d.p. W/C | 324.16 GPM flow; air capacity: 200" d.p. W/C | 816.7 SCFM @ 14.7 psia | 1404.95 SCFM @ 20 psig | 2696.28 SCFM @ 100 psig; 5 lb
Part Number : OP-H-3
A full orifice plate flow metering kit is offered by the Model OP-H-3 Orifice Plate Flowmeter. It has an integrated gasket and metering taps on a stainless steel orifice plate with a special holder or carrier ring. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The device may be installed by only sliding it between ordinary flanges; orifice flanges are not necessary. The Series OP may be utilized with suitable liquids and gases and comes in line diameters ranging from 1/2" to 24".
