Dwyer Instruments OP-J-3 | Orifice plate flowmeter | 4" line size | 2.800" bore | 0.70 Beta | Water capacity: 320" d.p. W/C | 547.11 GPM flow; air capacity: 200" d.p. W/C | 1380.03 SCFM @ 14.7 psia | 2373.02 SCFM @ 20 psig | 4553.68 SCFM @ 100 psig; 7 lb
Part Number : OP-J-3

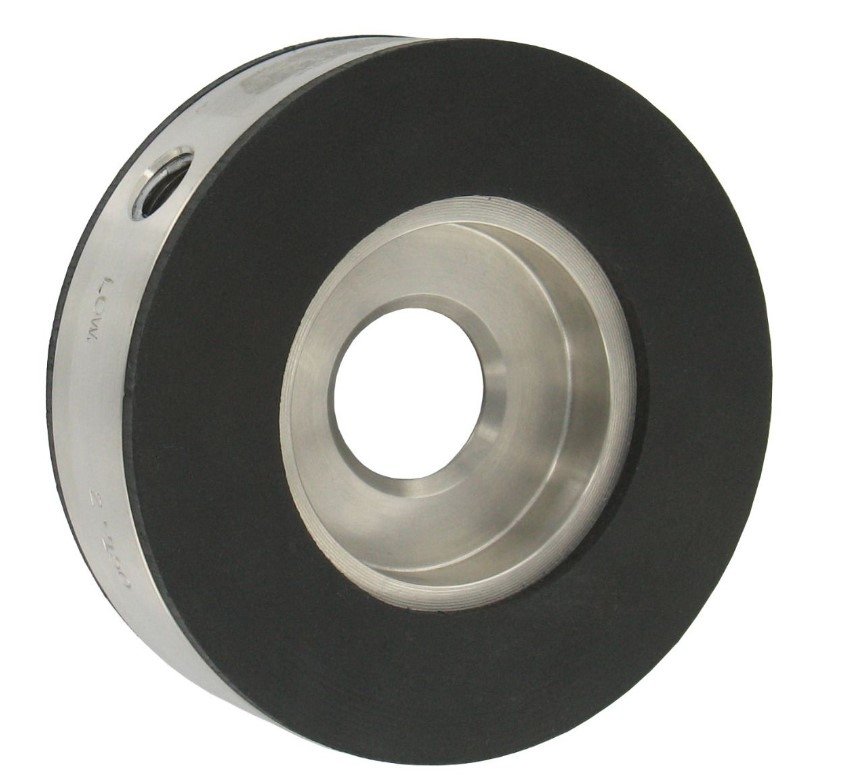

A full orifice plate flow metering kit is offered by the Model OP-J-3 Orifice Plate Flowmeter. It has an integrated gasket and metering taps on a stainless steel orifice plate with a special holder or carrier ring. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The device may be installed by only sliding it between ordinary flanges; orifice flanges are not necessary. The Series OP may be utilized with suitable liquids and gases and comes in line diameters ranging from 1/2" to 24".
