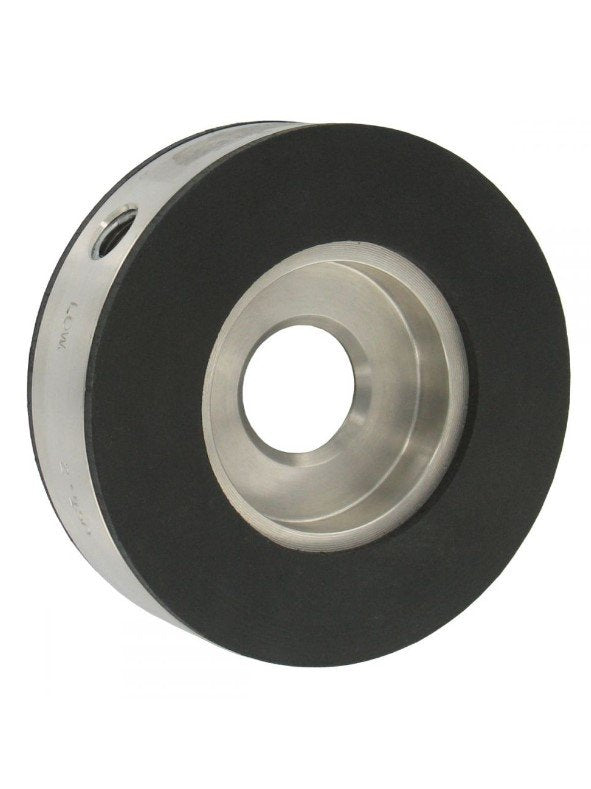

Dwyer Instruments OP-M-1 | Orifice plate flowmeter | 8" line size | 2.400" bore | 0.30 Beta | Water capacity: 20" d.p. W/C | 87.95 GPM flow; air capacity: 20" d.p. W/C | 333.87 SCFM @ 14.7 psia | 517.25 SCFM @ 20 psig | 945.28 SCFM @ 100 psig; 14 lb
Part Number : OP-M-1
A full orifice plate flow metering kit is offered by the Model OP-M-1 Orifice Plate Flowmeter. It has an integrated gasket and metering taps on a stainless steel orifice plate with a special holder or carrier ring. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The device may be installed by only sliding it between ordinary flanges; orifice flanges are not necessary. The Series OP may be utilized with suitable liquids and gases and comes in line diameters ranging from 1/2" to 24".
