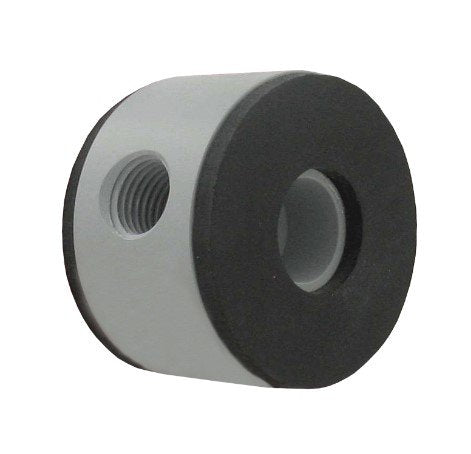

Dwyer Instruments PE-C-1 | PVC orifice plate flowmeter | 1" line size | 0.300" bore | 0.29 Beta | Water capacity: 20" d.p. W/C | 1.38 GPM flow; air capacity: 5.24 SCFM @ 14.7 psia | 8.11 SCFM @ 20 psig | 14.8 SCFM @ 100 psig; 1 lb
Part Number : PE-C-1
The one-piece PVC structure of the Model PE-C-1 Orifice Plate Flowmeter has a special holder or carrier ring with integrated gaskets and metering taps. The Series PE is a real primary element that includes all of the necessary components for differential pressure measurement, in contrast to a normal orifice plate. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The Series PE is utilized for air and most gases and comes in line diameters ranging from 1/2" to 24". It satisfies or surpasses ISO, AGA, and ASME requirements.
