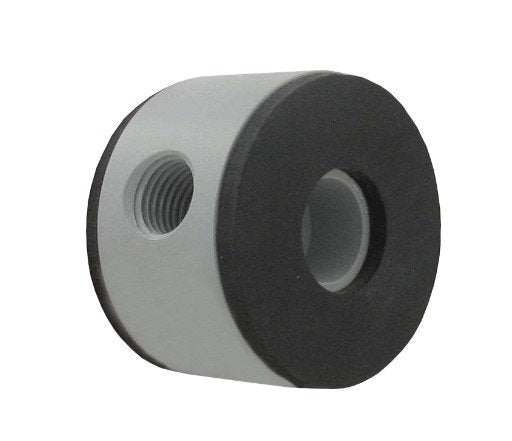

Dwyer Instruments PE-D-3 | PVC orifice plate flowmeter | 1-1/4" line size | 1.00" bore | 0.72 Beta | Water capacity: 320" d.p. W/C | 71.77 GPM flow; air capacity: 180 SCFM @ 14.7 psia | 309.97 SCFM @ 20 psig | 595.2 SCFM @ 100 psig; 1 lb
Part Number : PE-D-3
The one-piece PVC structure of the Model PE-D-3 Orifice Plate Flowmeter has a special holder or carrier ring with integrated gaskets and metering taps. The Series PE is a real primary element that includes all of the necessary components for differential pressure measurement, in contrast to a normal orifice plate. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The Series PE is utilized for air and most gases and comes in line diameters ranging from 1/2" to 24". It satisfies or surpasses ISO, AGA, and ASME requirements.
Free UAE shipping available
For pricing, please contact our experts.
