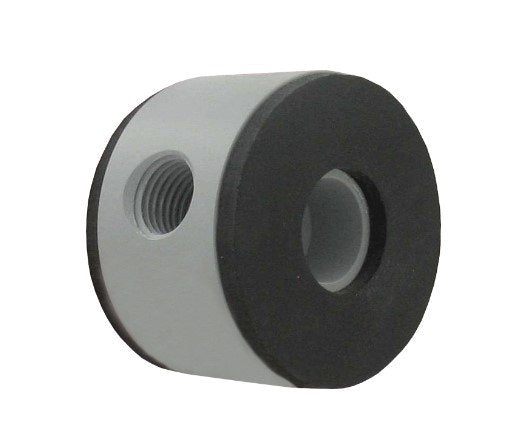

Dwyer Instruments PE-L-2 | PVC orifice plate flowmeter | 6" line size | 3.000" bore | 0.49 Beta | Water capacity: 100" d.p. W/C | 317.74 GPM flow; air capacity: 1331.63 SCFM @ 14.7 psia | 1820.05 SCFM @ 20 psig | 3387.93 SCFM @ 100 psig; 4 lb
Part Number : PE-L-2
The one-piece PVC structure of the Model PE-L-2 Orifice Plate Flowmeter has a special holder or carrier ring with integrated gaskets and metering taps. The Series PE is a real primary element that includes all of the necessary components for differential pressure measurement, in contrast to a normal orifice plate. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The Series PE is utilized for air and most gases and comes in line diameters ranging from 1/2" to 24". It satisfies or surpasses ISO, AGA, and ASME requirements.
