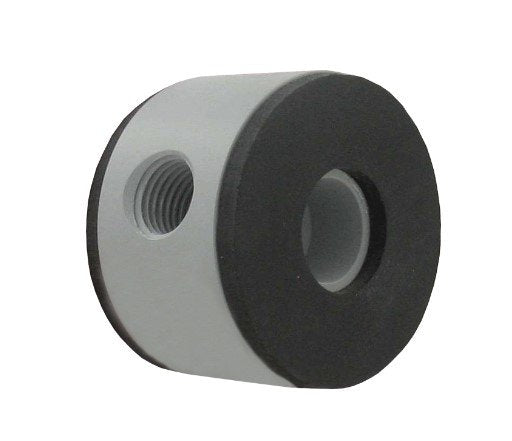

Dwyer Instruments PE-N-2 | PVC orifice plate flowmeter | 10" line size | 5.000" bore | 0.5 Beta | Water capacity: 100" d.p. W/C | 883.04 GPM flow; air capacity: 3145.50 SCFM @ 14.7 psia | 5060.38 SCFM @ 20 psig | 9421.74 SCFM @ 100 psig; 6 lb
Part Number : PE-N-2
The one-piece PVC structure of the Model PE-N-2 Orifice Plate Flowmeter has a special holder or carrier ring with integrated gaskets and metering taps. The Series PE is a real primary element that includes all of the necessary components for differential pressure measurement, in contrast to a normal orifice plate. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The Series PE is utilized for air and most gases and comes in line diameters ranging from 1/2" to 24". It satisfies or surpasses ISO, AGA, and ASME requirements.
