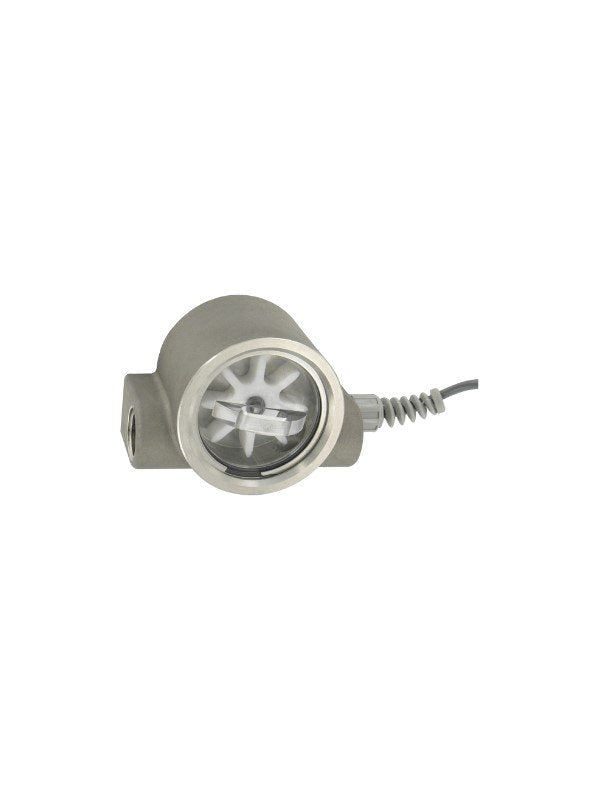

Dwyer Instruments SF11 | Sight flow transmitter | Clear polycarbonate cover

Name: Dwyer Instruments SF11 | Sight flow transmitter | Clear polycarbonate cover
Brand: Dwyer
SKU: SF11
Availability: OutOfStock

Part Number : SF11

A series of sight indicators, the Model SF11 Sight Flow Transmitter may show pipeline contents or flow and output an analog signal with a 4 to 20 mA signal that is proportionate to the flow rate. It can have a transparent polycarbonate cover or one made of 316 SS.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-2% FS
Approvals	CE
Connection	Electrical: Wire leads, 22 AWG x 9' (2.7 m)
Connection	Process: 1/2" female NPT
Loop Resistance	1150 ¢ž¦ max
Manufacturer	Dwyer Instruments
Material	Wetted: 316 SS shaft and case, Iglide® bearings, Buna-N seal and acetal copolymer, (polycarbonate cover on Model SF11)
Maximum Operating Pressure	500 psig (34 bar) Model SF10, 200 psig (14 bar) Model SF11.
Maximum operating temperature	20 to 225°F (-7 to 107°C)
Maximum Particle Size	100 µm
Output	4 to 20 mA
Range	Flow: 0.5 to 15 GPM (2 to 60 LPM)
Repeatability	0.5% FS
Response Time	2 s to 90% (step change in flow rate)
Supply Voltage AC	12 to 35 VDC
Type	Sight flow transmitter

Combines the benefits of hermetically sealed electronics with tangential turbine technology to deliver precise flow control and monitoring even under the most extreme conditions.
For remote flow monitoring, a 2-wire loop-powered arrangement sends a 4 to 20 mA signal proportionate to flow rate.
A clear polycarbonate viewing cover is available to provide a visual flow indicator.
Additional protection is provided by the 316 SS cover, which has a 500 psig (34 bar) pressure limit.
LED power indicator, polarity protection, adjustable zero and span, and overcurrent limitation.
Measures flow accurately in both directions and is orientable for mounting.
