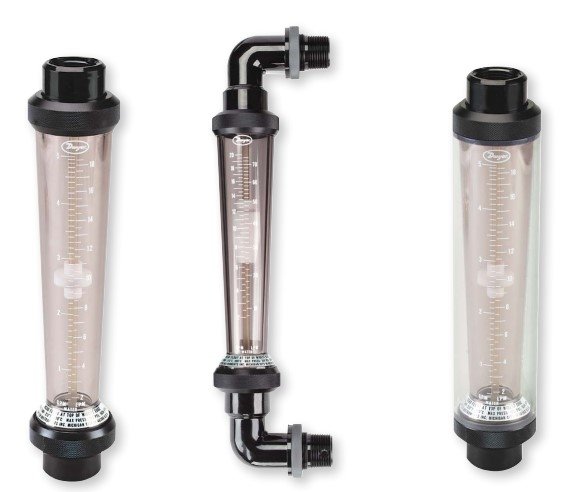

Dwyer Instruments UV-C112 | Polysulfone flowmeter | Range 5-50 SCFM (70-1400 LPM) air
The Model UV-C112 Ultra-ViewTM Polysulfone Flowmeter is a dual-scale, ultra-pure, laboratory-grade flowmeter that measures water, air, and other suitable medium flow in GPM and LPM. High pressures and temperatures up to 150 psi (10.34 bar) and 212°F (100°C) are no match for the Series UV.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-2% FS @ 70°F +/-2°F (21.1°C) and 14.7 psia (in line connection rating only) |
Connection | Process: 1" female NPT. Optional 90° polysulfone elbow - 1" male NPT |
Fitting Torque | Maximum 22 ft lb |
Manufacturer | Dwyer Instruments |
Material | Wetted: Polysulfone body and fittings, fluoroelastomer O-rings and virgin PTFE float |
Maximum Operating Pressure | 150 psi (10.34 bar) |
Maximum operating temperature | 35 to 212°F (2 to 100°C) 35 to 130°F (2 to 54°C) for PVC fitting option |
Range | 5-50 SCFM (70-1400 LPM) air |
Repeatability | +/-1% FS @ 70 +/-2°F (21.1°C) and 14.7 psia (in line connection rating only) |
Scale | Length: 6" (152.40 mm) - 7" (177.80 mm), depending on model |
Type | Polysulfone flowmeter |
Weight | 1 lb (457 g) (for 20 GPM range) |
- Ideal for situations where other flowmeters fail, the corrosion-resistant polysulfone body reduces the need for replacement parts and time.
- Low maintenance expenses are produced by an easily cleaned body.
- Internal scale is protected by a polycarbonate barrier, extending the product's operational life.
- Minimal installation expenses when panel mount polysulfone fittings are chosen.
