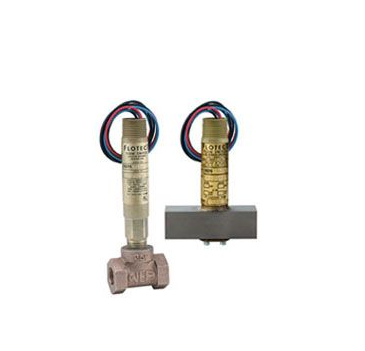

Dwyer Instruments V6EPB-B-D-5-B | Mini-size flow switch | Brass upper and lower body | 1-1/2" NPT | Brass tee

Name: Dwyer Instruments V6EPB-B-D-5-B | Mini-size flow switch | Brass upper and lower body | 1-1/2" NPT | Brass tee
Brand: Dwyer
SKU: V6EPB-B-D-5-B
Availability: OutOfStock

Part Number : V6EPB-B-D-5-B

Surprisingly small in size, the Model V6EPB-B-D-5-B Flotect® Flow Switch is designed exclusively to monitor flows of liquid, gas, or air. This Series has been extensively tested in thousands of pipeline installations and processing plants worldwide. It is weatherproof, compliant with NEMA 4, and explosion-proof (specifications include a listing). Tees range in diameter from 1/2" to 2" (12.70 to 50.80 mm) and can be installed in pipelines. The unit may be readily adjusted to fit 1/4" and 3/8" (6.35 and 9.53 mm) pipework by simply adding bushings.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Approvals	ATEX, CE, CSA, IECEx, KTL, UL
Connection	Conduit: 3/4" (19.05 mm) male NPT standard, 3/4" (19.05 mm) female NPT or M25 with BSPT option on junction box models
Connection	Electrical: UL models: 18 AWG, 18" (457.20 mm) long. ATEX/CSA / IECEx models: terminal block
Connection	Process: 1/2" (12.70 mm) male NPT or 1/2" (12.70 mm) male BSPT on models without a tee
Enclosure Rating	Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D Class II, Groups E, F, and G. (Group A on stainless steel body models only). ATEX CE 2813 II 2 G Ex db IIC T6 Gb Process Temp ¢°¤75°C Alternate Temperature Class T5 Process Temp ¢°¤90°C, 115°C (T4) Process Temp ¢°¤105°C consult factory. EU-Type Certificate No.: KEMA 04ATEX2128. ATEX Standards: EN 60079-0:2012+A11:2013 EN 60079-1:2014.IECEx Certified: For Ex db IIC T6 Gb Process Temp¢°¤75°C Alternate Temperature Class T5 Process Temp ¢°¤90°C, 115°C (T4) Process Temp¢°¤105°C consult factory. IECEx Certificate of Conformity: IECEx DEK 11.0039 IECEx Standards: IEC 60079-0:2011 IEC 60079-1:2014 Korean Certified (KC) for: Ex d IIC T6 Gb Process Temp ¢°¤75°C KTL Certificate Number: 12-KB4BO-0091
Manufacturer	Dwyer Instruments
Material	Wetted: Standard V6 Models: Vane: 301 SS Lower Body: brass or 303 SS Magnet: ceramic Other: 301, 302 SS Tee: brass, iron, forged steel, or 304 SS. V6 Low Flow Models: Lower body: brass or 303 SS Tee: brass or 304 SS Magnet: ceramic O-ring: Buna-N standard, Fluoroelastomer optional Other: 301, 302 SS
Maximum Operating Pressure	Brass lower body with no tee models 1000 psig (69 bar), 303 SS lower body with no tee models 2000 psig (138 bar). Brass tee models 250 psi (17.2 bar), iron tee models 1000 psi (69 bar), forged and stainless steel tee models 2000 psi (138 bar), low flow models 1450 psi (100 bar)
Maximum operating temperature	-4 to 220°F (-20 to 105°C) Standard, MT high temperature option 400°F (205°C) (MT not UL, CSA, ATEX, IECEx or KC) ATEX Compliant AT, IECEx IEC Option and KC (KC Option), Ambient Temperature -4 to 167°F (-20 to 75°C) Process Temperature: -4 to 220°F (-20 to 105°C)
Mounting	Switch can be installed in any position but the actuation/deactuation flow rates in the charts are based on horizontal pipe runs and are nominal values
Rating	Electrical: UL models: 5 A @125/250 VAC. CSA, ATEX and IECEx models: 5 A @ 125/250 VAC (V~) 5A res., 3 A ind. @ 30 VDC (V ). MV option: .1 A @ 125 VAC (V~). MT option: 5 A @125/250 VAC (V~). [MT option not UL, CSA, ATEX or IECEx]
Set Point	Adjustment: Standard V6 models none. Without tee models vane is trimmable. Low flow models are field adjustable in the range shown. See set point charts on Catalog page
Switch Type	SPDT snap switch standard, DPDT snap switch optional
Type	Mini-size flow switch
Upper Body	Brass or 303 stainless steel
Weight	2 to 6 lb (.9 to 2.7 kg) depending on construction

Outstanding functionality with a special magnetically operated switch.
Longer product life because to the free-swinging vane, which uses a straightforward lever arm instead of bellows, springs, or seals to activate a snap switch by drawing a magnet within the solid metal switch body.
Long-lasting, leak-proof body made from bar stock satisfies application requirements.
When it comes to maintenance, electrical assemblies that are easily replaceable without removing the item from installation can save time and money by avoiding the need to stop operations.
Select from models featuring a field-adjustable trimmable vane or a calibrated vane in a tee.
Fast installation using a fitting that fits into a pipeline with ease and immediately using a flange, tee, or threadolet (see to the application drawings).
Possesses a high pressure rating of 2000 psig (138 bar) for the SS body and 1000 psig (69 bar) for the brass body, meeting even the most demanding applications.
Meets the needs of customer-level applications with a low flow variant that has a field-adjustable set point.
