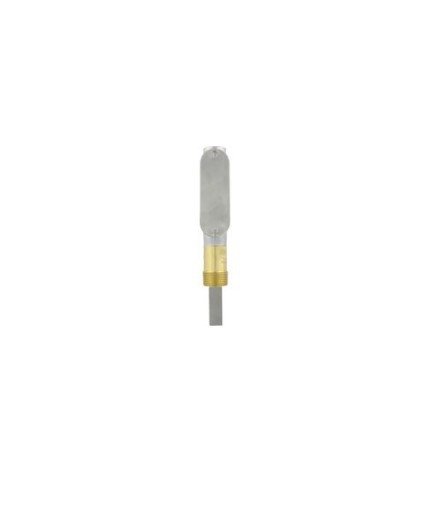

Dwyer Instruments V7-WBS-30N | Flotect® vane operated flow switch | Weatherproof | Brass body | 1" NPT | Trimmable vane

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : V7-WBS-30N

When flow or no-flow conditions arise, the Model V7-WBS-30N Flotect® Flow Switch is a low-cost range switch that can be used with appropriate liquids to start or stop electrically operated equipment. Design is standard waterproof, satisfying NEMA 4X.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Approvals	CE, UL
Body Material	Upper: Die cast aluminum
Connection	Conduit: 1/2" NPSM
Connection	Electrical: 3 screw type, common, normally open and normally closed
Connection	Process: 1" male NPT. Contact factory for optional tees
Enclosure Rating	Weatherproof, meets NEMA 4X (IP66)
Manufacturer	Dwyer Instruments
Material	Wetted: Vane: 301 SS, Process connection: Brass or 316 SS, Magnet: Ceramic, Other: 301, 302 SS
Maximum Operating Pressure	250 psi (17.2 bar)
Maximum operating temperature	-40 to 250°F (-40 to 121°C)
Mounting	Horizontal or vertical (actuation flow rates are based on horizontal pipe runs in the vertical position). Will not work in vertical pipe with down flow
Rating	Electrical: 10 A @ 125, 250, 480 VAC 1/8 hp @ 125 VAC, 1/4 hp @ 250 VAC
Set Point	Vane is trimmable, see set point chart on Catalog page
Size	Pipe: 1" to 4"
Switch Type	SPDT snap switch
Type	Vane Operated Flow Switch
Weight	1 lb 2 oz (500 g)

The magnetically-actuated switching architecture offers superior performance.
Longer product life because of the free-swinging vane, which uses a straightforward lever arm without bellows, springs, or seals to break to activate a snap switch by drawing in a magnet inside the solid metal switch body.
Dependable, leak-proof body made from bar material that satisfies application standards.
Strong vane design with a long working life that is field trimmable for set point adjustment and rigid.
