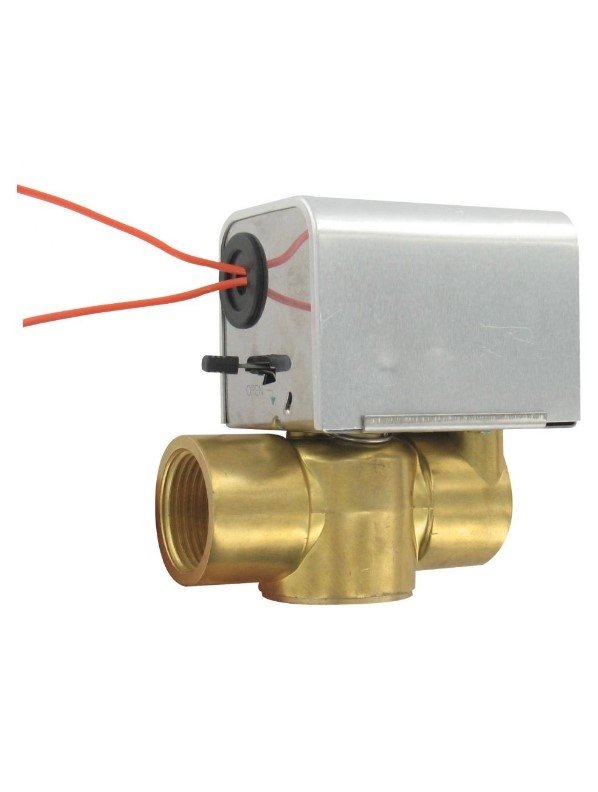

Dwyer Instruments ZV1032-NO | Two-way zone valve | 3/4" NPT | 120 VAC

Name: Dwyer Instruments ZV1032-NO | Two-way zone valve | 3/4" NPT | 120 VAC
Brand: Dwyer
SKU: ZV1032-NO
Availability: OutOfStock

Part Number : ZV1032-NO

Model ZV1032-NO For controlling the flow of hot and cold water in HVAC systems, zone valves are perfect. To regulate the temperature of a room, zone valves are usually used in conjunction with thermostats. The ZV1 is powered by electricity to open and closed by spring action. The units come with a 24 or 120 VAC power supply and are available in 1/2", 3/4", and 1" diameters. These units are exact replacements for competitor devices and are simple to install. The manual override lever is conveniently located outside. For information about the optional auxiliary switches, BSP or sweat connections, and 220 VAC power supply, contact the factory.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Body	2-way, Normally Open
Connection	3/4" NPT
Connection	Electrical: 22 AWG, 5" (127 mm) long
Cycle Time	Opening time: 11 seconds; Closing time: 5 seconds
Enclosure Rating	General purpose
End connection	Female NPT (optional BSP, sweat connections)
Flow Characteristic	Quick opening
Housing Material	Aluminum
Input	On/off
Material	Wetted: Brass, stainless steel, NBR
Maximum Operating Pressure	Maximum: 300 psi (20.7 bar); Close-off: 1/2" to 3/4": 22 psi (1.5 bar), 1": 14.5 psi (1 bar)
Maximum operating temperature	Ambient: 32 to 104°F (0 to 40°C)
Maximum operating temperature	Process: 0 to 201°F (0 to 94°C)
POWER CONSUMPTION	6.5 W
Size	Line: 1/2" to 1"
Type	Two-way Zone Valve
Voltage	120 VAC

The ZV1 Series Zone Valves are designed for flow control in hot and cold water HVAC (Heating, Ventilation, and Air Conditioning) systems, making them ideal for regulating room temperature.
Typically used alongside a thermostat, these zone valves help regulate room temperature by controlling the flow of hot or cold water in HVAC systems.
The ZV1 valves are electrically driven to open and spring to close, ensuring precise and efficient flow control in HVAC systems.
Available in sizes of 1/2", 3/4", and 1", providing versatility to fit various pipe diameters and flow requirements.
Units are available with 24 or 120 VAC power supply options, accommodating different electrical setups and voltage standards.
These units are easy to install and serve as direct replacements for competitor units, reducing installation time and complexity.
Equipped with a manual override lever that is easily accessible externally, allowing for manual operation in case of power failure or maintenance needs.
