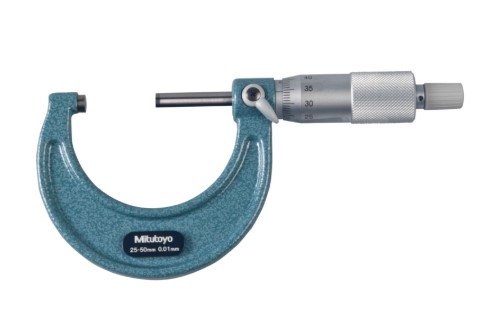

Mitutoyo 103-138H | Outside Micrometer | Series 103 | Graduation 0.01mm | Accuracy ±0.002mm | Range 25 to 50mm
The Mitutoyo 103-138H Outside Micrometer offers precise measurements with graduation of 0.01mm. It provides an accuracy of ±0.002mm, ensuring high reliability in measurement. With a range of 25mm to 50mm, it is ideal for measuring small to medium-sized parts. The micrometer features a hardened steel anvil and spindle for durability and long-term accuracy. Its ergonomic design allows for comfortable and precise operation. A perfect tool for precision measurement in manufacturing, automotive, and engineering applications.
- Specifications
- Features
- Downloads
| Accuracy | +/-0.002 mm |
| Contents | Adjustment Tool, Case, Stand, User Manual |
| Flatness | 0.6 µm |
| Inch-Metric | Metric |
| Maximum measurement (mm/inch) | 50mm |
| Measuring Force | 5 - 10 N |
| Minimum Measurement (mm / inch) | 25mm |
| Resolution | 0.01 mm |
| Scale | Thimble and sleeve satin chrome finish, ƒ ̧18 mm |
| Spindle pitch | 0.5 mm |
| Spindle thread | With spindle lock, ƒ ̧6,35 mm (¢°¤300 mm) ƒ ̧ 8 mm (>300 mm) |
| Type | Outside Micrometer |
| Weight | 215 g |
- High Precision: Provides a graduation of 0.01mm for accurate measurements.
- Exceptional Accuracy: Delivers an accuracy of ±0.002mm for reliable results.
- Measurement Range: Suitable for measuring objects within the 25mm to 50mm range.
- Durable Construction: Features a hardened steel anvil and spindle for long-lasting performance.
- Ergonomic Design: Designed for ease of use with a comfortable grip for precise handling.
- Versatile Application: Ideal for precision measurements in automotive, manufacturing, and engineering industries.
Related Products
Mitutoyo 103-260 Outside Micrometer, Range 0-1"
Mitutoyo 103-260 Outside Micrometer, Range 0-1"
Mitutoyo 103-219 Outside Micrometer, Range 4-5"
Mitutoyo 103-219 Outside Micrometer, Range 4-5"
Mitutoyo 103-221 Outside Micrometer, Range 6 To 7"
Mitutoyo 103-221 Outside Micrometer, Range 6 To 7"
Mitutoyo 103-220 Outside Micrometer, Range 5 To 6"
Mitutoyo 103-220 Outside Micrometer, Range 5 To 6"
Mitutoyo 103-141-10 : Outside Micrometer Range 100-125mm
Mitutoyo 103-141-10 : Outside Micrometer Range 100-125mm

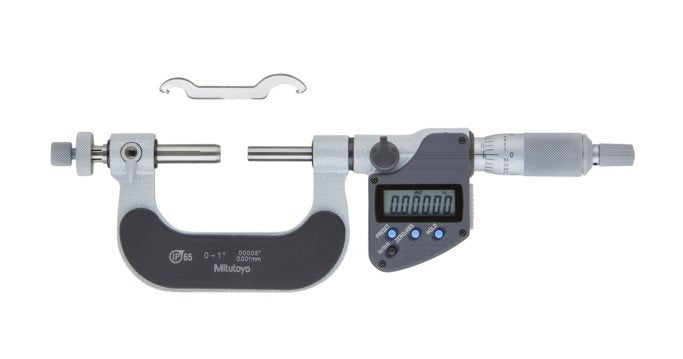

Mitutoyo 324-351-30 | Digital Gear Tooth Micrometer | Series 324 | Resolution 0.001mm | Accuracy ± 0.004mm | Range 0 to 25mm
