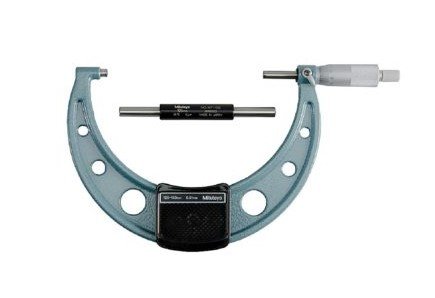

Mitutoyo 103-142-10H | Outside Micrometer | Series 103 | Graduation 0.01mm | Accuracy ±3 µm | Range 125 to 150mm
The Mitutoyo 103-142-10H Outside Micrometer offers exceptional precision with a graduation of 0.01mm. It features an accuracy of ±3 µm, ensuring highly reliable measurements. With a measurement range of 125mm to 150mm, it's perfect for medium-sized parts and components. The micrometer's hardened steel anvil and spindle provide durability for long-term use. Its ergonomic design ensures comfort and accuracy during operation. Ideal for use in precision measurement applications in automotive, manufacturing, and engineering fields.
- Specifications
- Features
- Downloads
| Accuracy | +/-3 µm |
| Digital/Analog | Analog |
| Flatness | 0.6 µm |
| Graduation | 0.01 mm |
| Inch-Metric | Metric |
| Measuring Force | 5 - 10 N |
| Parallelism | 3 µm |
| Range | 125-150 mm |
| Scale | Thimble and sleeve satin chrome finish, ƒ ̧18 mm |
| Spindle pitch | 0.5 mm |
| Spindle thread | With spindle lock, ƒ ̧6,35 mm (¢°¤300 mm) ƒ ̧ 8 mm (>300 mm) |
| Type | Outside Micrometer |
| Weight | 665 g |
- For durability, the frame is finished with baked enamel in a hammer tone.
- The scale is laser-etched onto the sleeve and thimble.
- The spindle and anvil's carbide facing prevents wear, keeping surfaces flat for longer periods of time.
- There is always a speeder available to rotate the spindle quickly.
- Comes in a fitted plastic box and has a standard bar with the exception of 0–25mm.s
