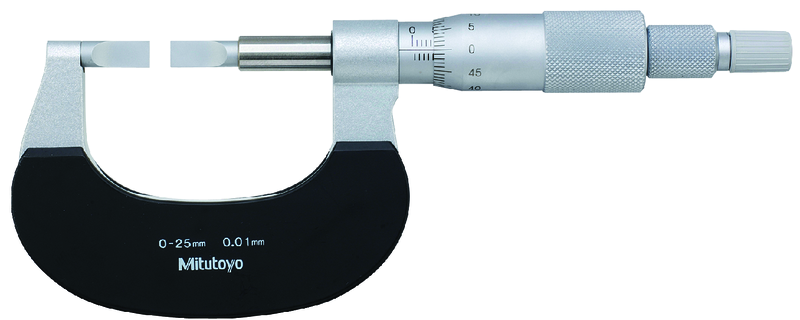

Mitutoyo 122-112 | Blade Micrometer | 0.4 mm Steel Blade
With a 0.4 mm hardened steel blade and a metric thimble scale, the Mitutoyo 122-112 blade micrometer reads to 0.01 mm. Use the 122-112 on the groove diameter of shafts, on keyways or other awkward features, where the blade anvil and non-rotating spindle give access.
- 122-112 accuracy: ±3 µm
- Blade on 122-112: 0.4 mm hardened steel blade
- Parallelism 3 µm (122-112)
- Non-rotating ø8 mm spindle with 0.5 mm pitch (122-112)
- Specifications
- Features
- Downloads
| Part Number | 122-112 |
| Brand | Mitutoyo |
| Series | 122 |
| Type | Analogue blade micrometer |
| Graduation | 0.01 mm |
| Blade | Hardened steel, 0.4 mm thick |
| Accuracy | ±3 µm |
| Spindle | ø8 mm, non-rotating, spindle pitch 0.5 mm |
| Parallelism | 3 µm |
This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:
- Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways, and other hard-to reach features.
- Non-rotating spindle.
