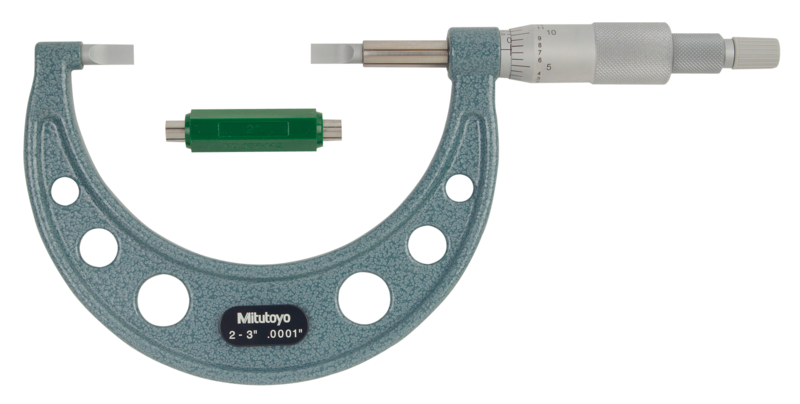

Mitutoyo 122-127 | Blade Micrometer | 2-3 in, 0.75 mm Steel Blade
Covering 2-3 in, Mitutoyo 122-127 is a Series 122 blade micrometer fitted with a 0.75 mm hardened steel blade and 0.0001 in graduation. Use the 122-127 on the groove diameter of shafts, on keyways or other awkward features, where the blade anvil and non-rotating spindle give access.
- Blade on 122-127: 0.75 mm hardened steel blade
- Non-rotating ø8 mm spindle with 0.635 mm pitch (122-127)
- 122-127 has an ø18 mm satin chrome thimble and sleeve
- Weight 410 g (122-127)
- Specifications
- Features
- Downloads
| Part Number | 122-127 |
| Brand | Mitutoyo |
| Series | 122 |
| Type | Analogue blade micrometer |
| Range | 2-3 in |
| Graduation | 0.0001 in |
| Blade | Hardened steel, 0.75 mm thick |
| Weight | 410 g |
| Spindle | ø8 mm, non-rotating, spindle pitch 0.635 mm |
| Scale | Thimble and sleeve ø18 mm, satin chrome |
This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:
- Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways, and other hard-to reach features.
- Non-rotating spindle.
