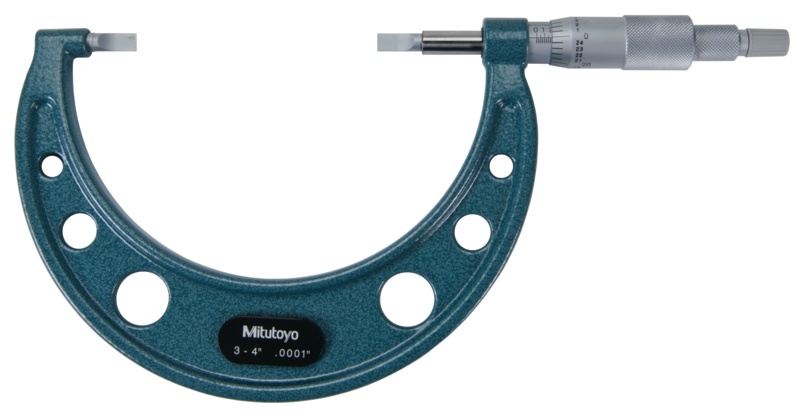

Mitutoyo 122-128 | Blade Micrometer | 3-4 in, 0.75 mm Steel Blade
With a 0.75 mm hardened steel blade and a 3-4 in range, the Mitutoyo 122-128 blade micrometer reads to 0.0001 in. The thin blade anvil and non-rotating spindle let the 122-128 measure shaft grooves, keyways and similar hard-to-reach features.
- Blade on 122-128: 0.75 mm hardened steel blade
- Non-rotating ø8 mm spindle with 0.635 mm pitch (122-128)
- 122-128 has an ø18 mm satin chrome thimble and sleeve
- Weight 550 g (122-128)
- Specifications
- Features
- Downloads
| Part Number | 122-128 |
| Brand | Mitutoyo |
| Series | 122 |
| Type | Analogue blade micrometer |
| Range | 3-4 in |
| Graduation | 0.0001 in |
| Blade | Hardened steel, 0.75 mm thick |
| Weight | 550 g |
| Spindle | ø8 mm, non-rotating, spindle pitch 0.635 mm |
| Scale | Thimble and sleeve ø18 mm, satin chrome |
This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:
- Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways, and other hard-to reach features.
- Non-rotating spindle.
