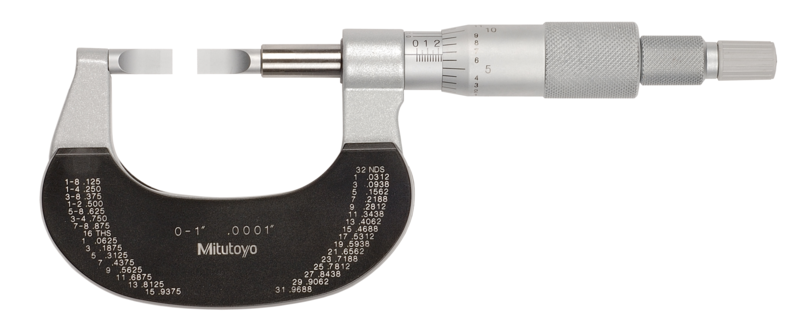

Name: Mitutoyo 122-135 Blade Micrometer, Hardened Steel Blade 0-1", 0.5mm Blade
Brand: Mitutoyo
SKU: 122-135
Availability: OutOfStock

Part Number : 122-135

This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways, and other hard-to reach features.
Non-rotating spindle.

Availability: Sold out

Free UAE shipping available

Analog/Digital	Analog
Graduation	0.0001"
Inch-Metric	Inch
Mass (main unit)	260 g
Measuring spindle	ƒ ̧8 mm, non-rotating, spindle pitch 0.635 mm
Parallelism	3 µm for models up to 75 mm (3+L/100) µm for models over 75 mm, L= max. range (mm)
Range	0 - 1"
Scale	Thimble and sleeve satin chrome finish, ƒ ̧18 mm

This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways, and other hard-to reach features.
Non-rotating spindle.
