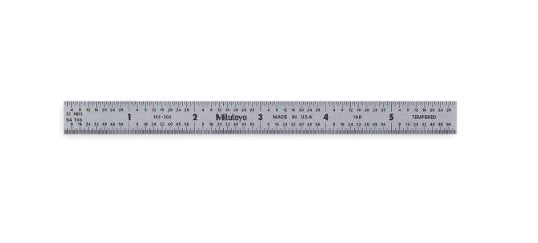

Mitutoyo 182-202 | Steel Rule | Fully-Flexible Rule | Series 182 | Accuracy ±0.006 inch | Width 0.5 inch | Range 0 to 6 inch
The Mitutoyo 182-202 is a high-precision, fully-flexible steel rule from Series 182, designed for accurate measurements in the imperial system. It features a 6-inch (16 R) length and is graduated in 1/32", 1/64", 1/50", and 1/100" increments, providing versatile measurement options. The rule is constructed from tempered stainless steel, ensuring durability and resistance to wear. Its satin chrome finish reduces glare, enhancing readability. With a width of ½ inch and a thickness of 1/64 inch, it offers flexibility for use on flat or curved surfaces. The accuracy is specified as +0.004" / -0.0035", making it suitable for precise measurement tasks.
- Specifications
- Features
- Downloads
| Accuracy | +/-0.006 Inch |
| Graduation | 1/50 Inch, 1/100 Inch, 1/32 Inch, 1/64 Inch |
| Inch-Metric | Inch |
| Range | 0 - 6 Inch |
| Series | 182 |
| Thickness | 0.4 mm |
| Type | Steel Rule |
| Width | 0.5 Inch |
- Range – Measures from 0 to 6 inches with fine graduations.
- Graduations – Features 1/32", 1/64", 1/50", and 1/100" scales for detailed measurements.
- High Accuracy – Precision rated at +0.004" / -0.0035" (approx. ±0.006").
- Fully Flexible – Ideal for measuring on flat, curved, or irregular surfaces.
- Durable Stainless Steel – Tempered for strength and long-lasting performance.
- Satin Chrome Finish – Reduces glare and improves readability of etched markings.
