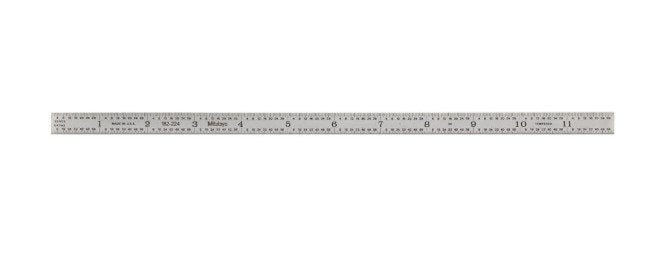

Mitutoyo 182-224 | Steel Rule | Fully-Flexible Rule | Series 182 | Accuracy ±0.006 inch | Width 0.5 inch | Range 0 to 12 inch
The Mitutoyo 182-224 is a high-precision, fully-flexible steel rule from Mitutoyo's Series 182, designed for accurate measurements in various applications. With a length of 12 inches and a width of 0.5 inches, it offers a substantial measuring range suitable for larger workpieces. The rule features graduations in 1/32", 1/64", 1/50", and 1/100" increments, providing versatility in measurement precision. Crafted from hardened stainless steel, it ensures durability and resistance to wear. The satin chrome finish reduces glare, enhancing readability under different lighting conditions. Its fully flexible design allows for accurate measurements on flat, curved, or irregular surfaces. With an accuracy of +0.005" / -0.0035", it delivers reliable and consistent results for professional use.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.006 Inch |
Graduation | 1/10 Inch, 1/50 Inch, 1/32 Inch, 1/64 Inch |
Inch-Metric | Inch |
Range | 0 - 12 Inch |
Series | 182 |
Thickness | 0.4 mm |
Type | Steel Rule |
Width | 0.5 Inch |
- Extended Measuring Range – Measures from 0 to 12 inches, suitable for medium-sized tasks.​
- High Accuracy – Provides precise measurements with ±0.006 inch tolerance.​
- Fully Flexible Design – Ideal for measuring on flat, curved, or irregular surfaces.​
- Graduation Scale – Features 1/32", 1/64", 1/10", and 1/50" increments for versatile measurement precision.​
- Durable Construction – Made from hardened stainless steel for long-lasting performance.​
- Satin Chrome Finish – Reduces glare and enhances readability of etched graduations.
