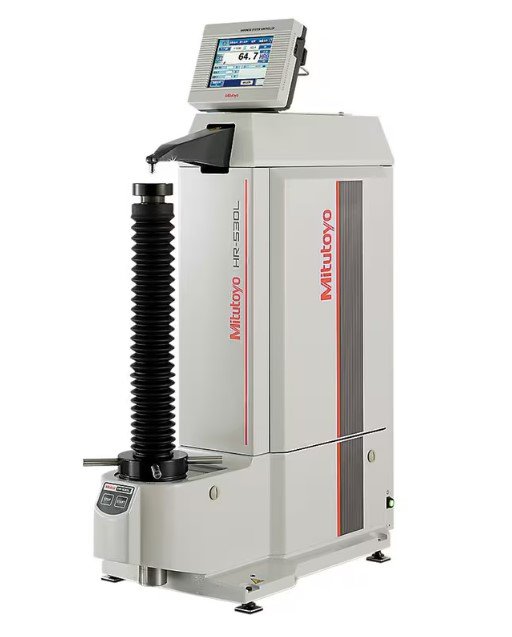

Mitutoyo 810-233-33 | Rockwell Hardness Testing Machines | HR-530 mm/inch main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | External Dimensions 250x667x621 mm
The Mitutoyo 810-233-33 Rockwell Hardness Testing Machine (HR-530 mm/inch) is a high-precision hardness tester designed to meet ISO, JIS, and ASTM standards. It operates within a temperature range of 5°C to 40°C, ensuring stable and reliable performance in various environments. The machine features a vibration frequency of 5Hz or lower, minimizing external interference for accurate measurements. With external dimensions of 250 x 667 x 621 mm, it is compact enough for laboratory and industrial use. The HR-530 provides both metric and inch measurements for versatility. Built for durability and ease of use, it offers consistent and repeatable results for quality control and material testing.
- Specifications
- Features
- Downloads
| Control Type | 5.7" touch screen display control |
| Data Output | RS-232C, SPC Digimatic D-type connection, USB |
| Height | Specimen: 250 mm |
| Mass (main unit) | 61 kg |
| Operation temperature | 5-40°C |
| POWER CONSUMPTION | 30 W |
| Power Supply | AC adapter 100 -240V, 50/60Hz Auto-selection |
| Range | Test Force: 29.42- 1839N (3-187,5kg) |
| Relative Humidity | 65% or lower without condensation |
| Resolution | 0.1 HR (settable) |
| Standards | Rockwell: ISO 6508-2, ASTM E18, JIS B7726 |
| Switch Type | Test Force: Software |
| Throat Depth | 150 mm |
| Type | Rockwell Hardness Testing Machine |
| Vibration | 5Hz or lower |
| WATER VOLUME | 11AAB941 |
| Weight | Specimen: 20 kg |
| XY Stage Size | Stage for Jominy test 810-700 (optional) |
- Standard Compliance: Conforms to ISO, JIS, and ASTM standards for reliable and accurate hardness testing.
- Dual Measurement Units: Provides both metric and inch measurements for versatility in various applications.
- Temperature Range: Operates between 5°C and 40°C, ensuring stable performance in different environmental conditions.
- Low Vibration: Vibration frequency of 5Hz or lower minimizes external interference for precise and repeatable results.
- Compact Design: External dimensions of 250 x 667 x 621 mm make it space-efficient for laboratory and industrial environments.
- Durable and Reliable: Designed for ease of use, with a robust build for long-lasting performance in quality control and material testing.
Related Products

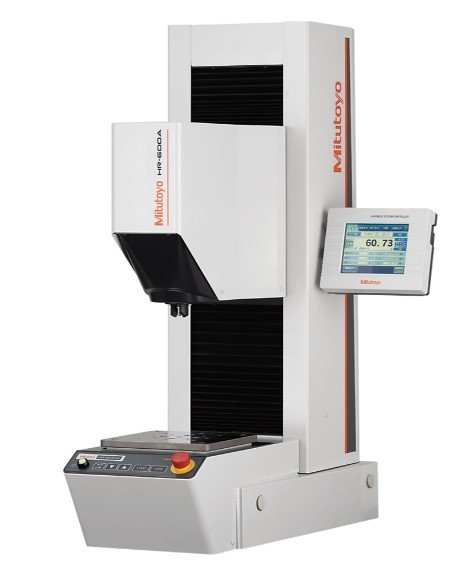

Mitutoyo 810-522-23 | Rockwell Hardness Testing Machines | HR-620A mm/inch main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | External Dimensions 350x681x935 mm
Mitutoyo 810-522-23 | Rockwell Hardness Testing Machines | HR-620A mm/inch main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | External Dimensions 350x681x935 mm

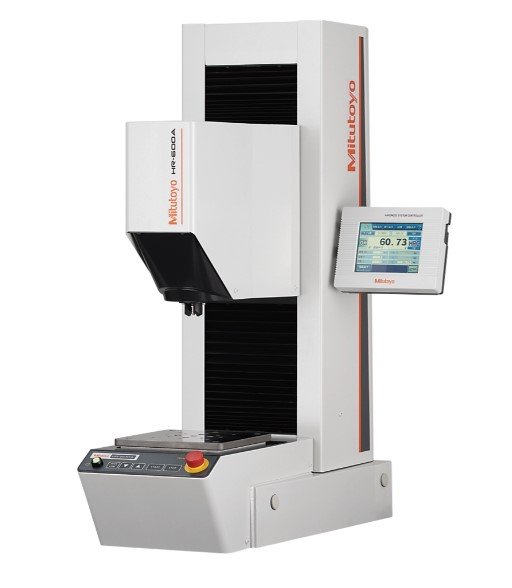

Mitutoyo 810-512-23 | Rockwell Hardness Testing Machines | HR-610A mm/inch main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | External Dimensions 350x681x935 mm
Mitutoyo 810-512-23 | Rockwell Hardness Testing Machines | HR-610A mm/inch main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | External Dimensions 350x681x935 mm

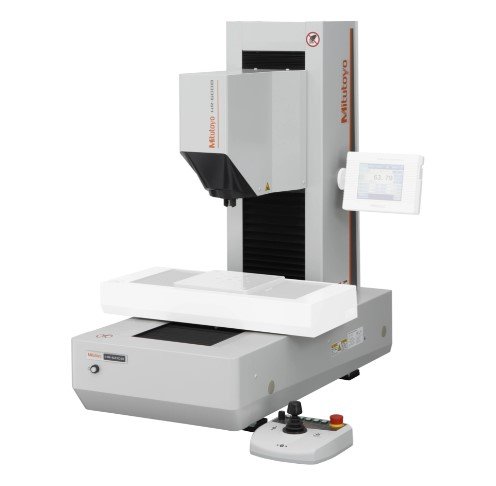

Mitutoyo 810-527-21 | Rockwell Hardness Testing Machines | HR-620B main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | External Dimensions 428x837x935 mm
Mitutoyo 810-527-21 | Rockwell Hardness Testing Machines | HR-620B main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | External Dimensions 428x837x935 mm

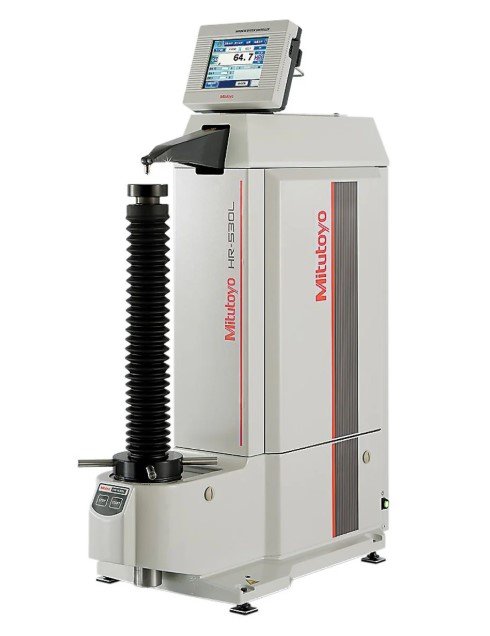

Mitutoyo 810-333-33 | Rockwell Hardness Testing Machines | HR-530L mm/inch main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | External Dimensions 250x667x766 mm
Mitutoyo 810-333-33 | Rockwell Hardness Testing Machines | HR-530L mm/inch main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | External Dimensions 250x667x766 mm

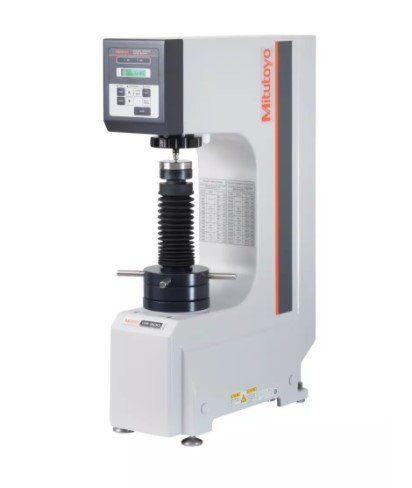

Mitutoyo 810-193-31 | Rockwell Hardness Testing Machines | HR-430MR main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz | External Dimensions 235x512x782 mm
Mitutoyo 810-193-31 | Rockwell Hardness Testing Machines | HR-430MR main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz | External Dimensions 235x512x782 mm
Mitutoyo 810-192-31 | Rockwell Hardness Testing Machines | HR-320MS main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz | External Dimensions 235x512x781 mm
Mitutoyo 810-192-31 | Rockwell Hardness Testing Machines | HR-320MS main unit ISO-JIS-ASTM | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz | External Dimensions 235x512x781 mm

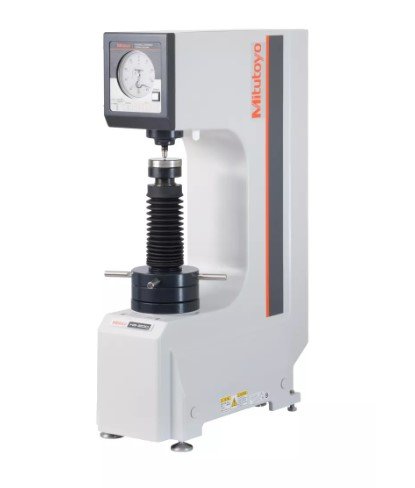

Mitutoyo 810-191-21 | Rockwell Hardness Testing Machines | HR-210MR main unit | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz | External Dimensions 235x512x780 mm
